SKU: 6028-NTN

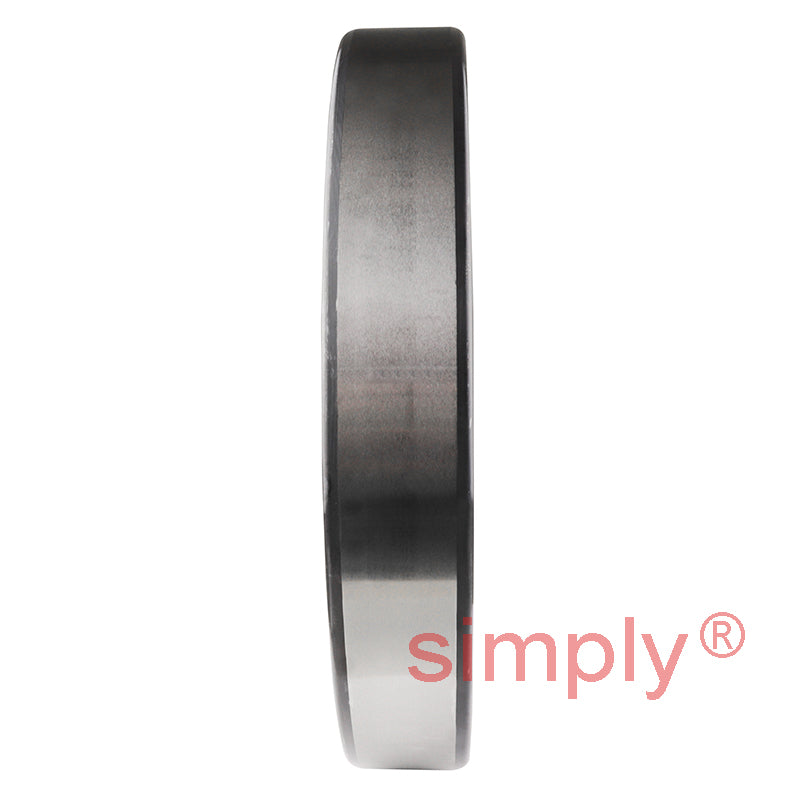

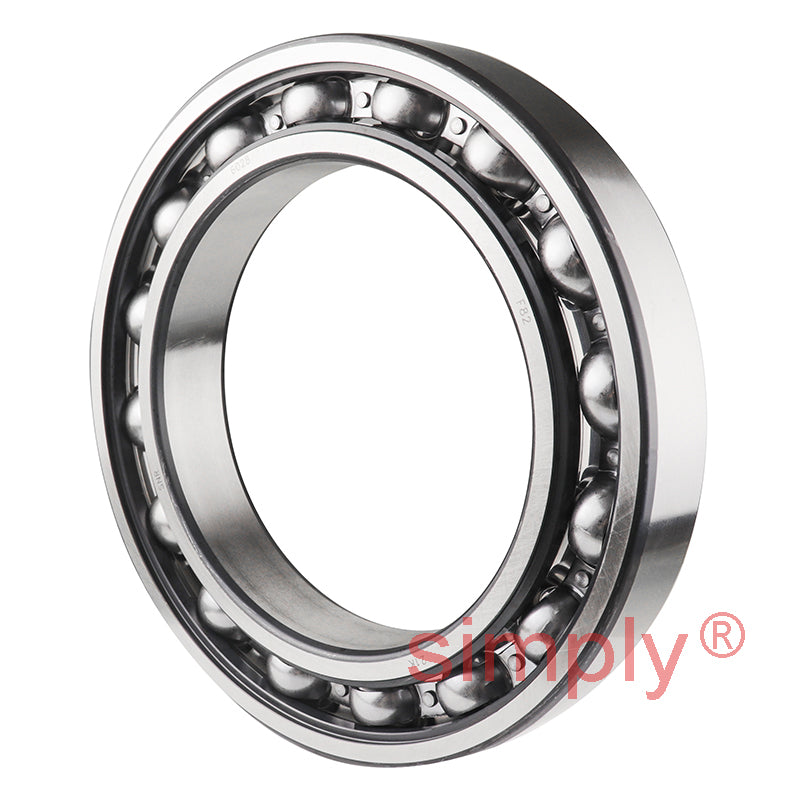

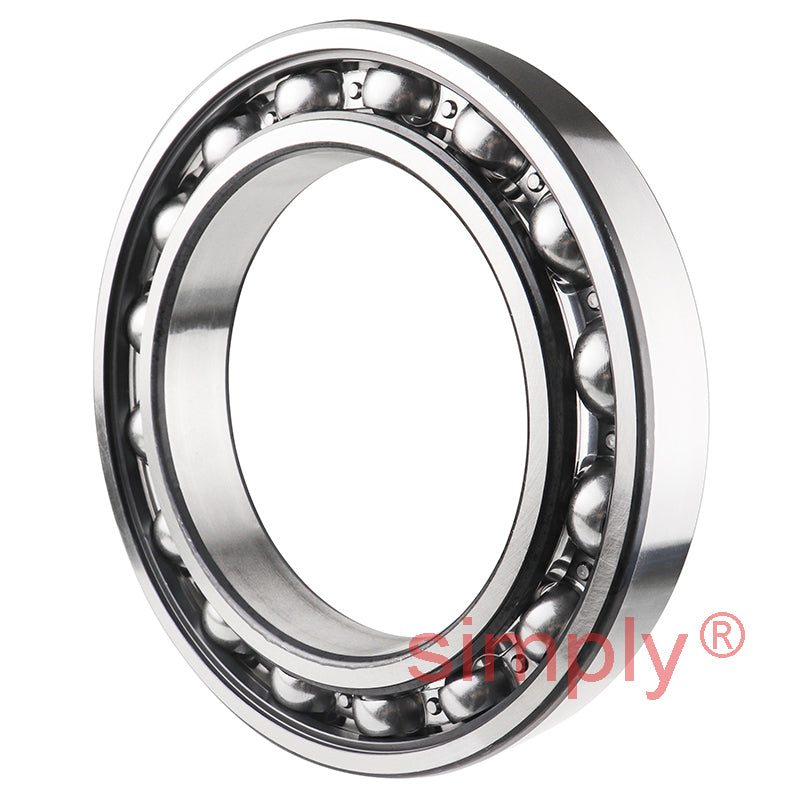

NTN 6028 Open Type Deep Groove Ball Bearing 140x210x33mm
NTN 6028 Open Type Deep Groove Ball Bearing 140x210x33mm
Regular price
£281.52
ex VAT£337.82inc. VAT
Regular price
Sale price
£281.52
ex VAT£337.82
inc. VAT
Equivalent to: 6028CM 9128K 9128 128KS 6128 3L28 EL140 ELL140
In stock
Price Break
3+
£250.55
5+
£236.48
10+
£233.66
25+
£230.85
49+
£228.03
74+
£225.22
99+
£211.14
199+
£208.32
249+
£205.51
499+
£202.69
999+
£197.06
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 6028CM 9128K 9128 128KS 6128 3L28 EL140 ELL140
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 140mm
- Outside Diameter:
- 210mm
- Width:
- 33mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 140mm |
| D | 210mm |
| B | 33mm |
| r<sub>s</sub> min | 2mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 122 kN |
| C<sub>or</sub> | 109 kN |
| C<sub>u</sub> | 5.85 kN |
| f<sub>0</sub> | 15.9 kN |
| Grease | 3000 rpm |
| Oil | 3500 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 149mm |
| D<sub>a</sub> Max. | 201mm |
| r<sub>as</sub> Max. | 2mm |
| Weight | 3.35 kg |
