SKU: 6026ZZC3/2AS-NTN

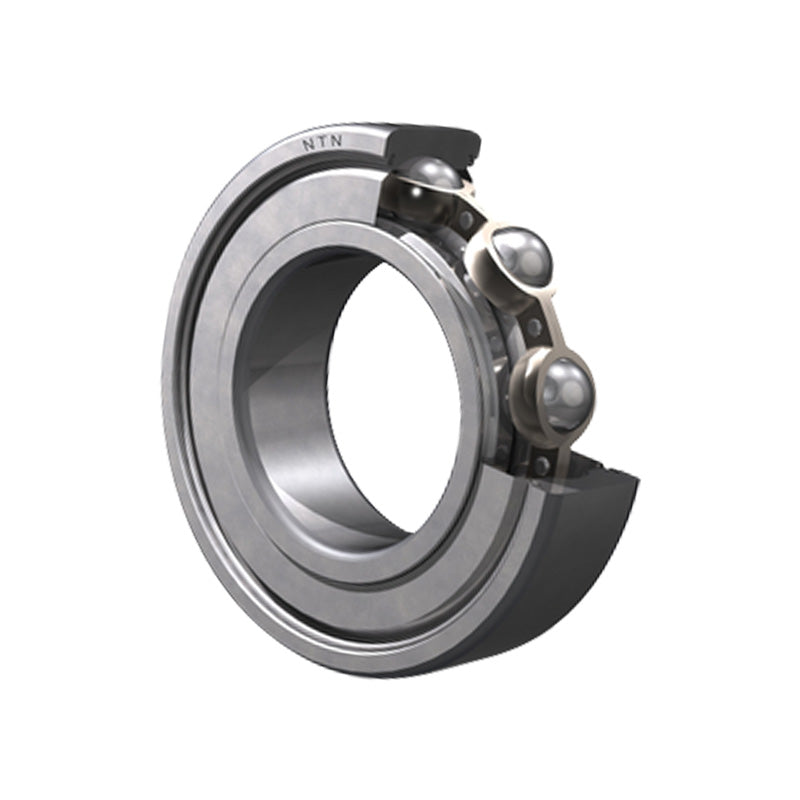

NTN 6026ZZC3/2AS Metal Shielded Type Deep Groove Ball Bearing 130x200x33mm
Equivalent to: 6026ZZC3 60262ZC3 6026ZZC3 60262ZRC3 6026ZZEC3 6026FFC3 6026DDC3 6026DDCC3 6026KDDCC3 EL1302ZC3 EL130ZZC3 9126KDDC3 9126FFC3 126KSFFC3 773L26C3 6126PPC3
In stock
Price Break
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
Equivalent: 6026ZZC3 60262ZC3 6026ZZC3 60262ZRC3 6026ZZEC3 6026FFC3 6026DDC3 6026DDCC3 6026KDDCC3 EL1302ZC3 EL130ZZC3 9126KDDC3 9126FFC3 126KSFFC3 773L26C3 6126PPC3
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 130mm
- Outside Diameter:
- 200mm
- Width:
- 33mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
| --- | Bearing dimensions |
|---|---|
| d | 130mm |
| D | 200mm |
| B | 33mm |
| r<sub>s</sub> min | 2mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 118 kN |
| C<sub>or</sub> | 101 kN |
| C<sub>u</sub> | 5.7 kN |
| f<sub>0</sub> | 15.8 kN |
| Grease | 3200 rpm |
| Oil | 3800 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 139mm |
| d<sub>a</sub> Max. | 148mm |
| D<sub>a</sub> Max. | 191mm |
| r<sub>as</sub> Max. | 2mm |
| Weight | 3.16 kg |
