SKU: 6026NR-NTN

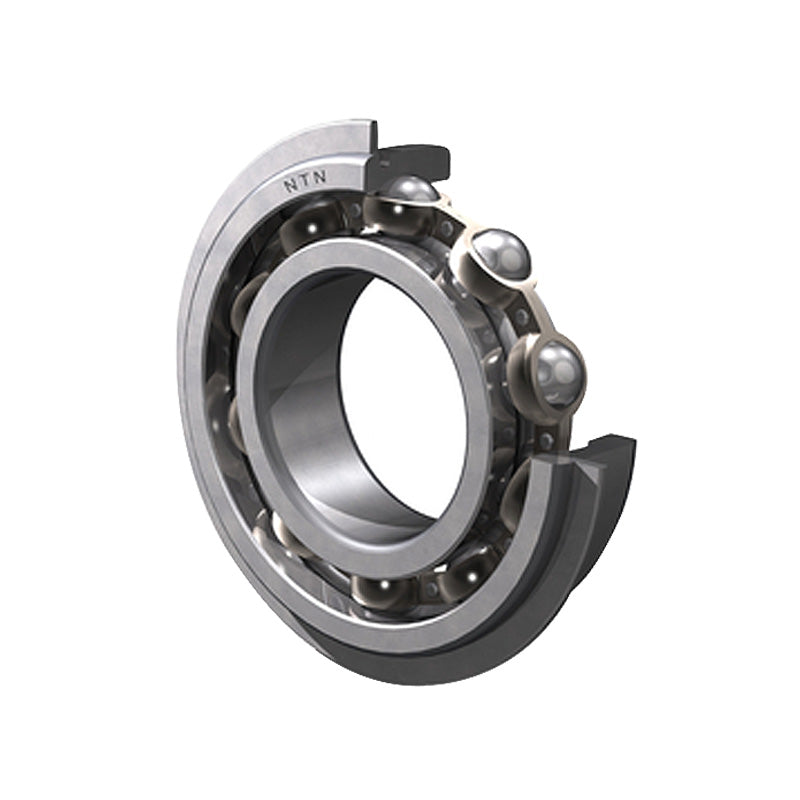

NTN 6026NR Open Type Deep Groove Ball Bearing with Snap Ring 130x200x33mm
NTN 6026NR Open Type Deep Groove Ball Bearing with Snap Ring 130x200x33mm
Regular price
£172.75
ex VAT£207.30inc. VAT
Regular price
Sale price
£172.75
ex VAT£207.30
inc. VAT
Equivalent to: 6026NRCM 9126KG 126KSG 43L26
In stock
Price Break
3+
£153.75
5+
£145.11
10+
£143.38
25+
£141.66
49+
£139.93
74+
£138.20
99+
£129.56
199+
£127.84
249+
£126.11
499+
£124.38
999+
£120.93
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
Equivalent: 6026NRCM 9126KG 126KSG 43L26
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 130mm
- Outside Diameter:
- 200mm
- Width:
- 33mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 130mm |
| D | 200mm |
| B | 33mm |
| r<sub>s</sub> min | 2mm |
| rNS Min. | 0.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 118 kN |
| C<sub>or</sub> | 101 kN |
| C<sub>u</sub> | 5.7 kN |
| f<sub>0</sub> | 15.8 kN |
| Grease | 3200 rpm |
| Oil | 3800 rpm |
| --- | Snap Ring Dimensions |
| D<sub>1</sub> Max. | 193.65mm |
| a Max. | 5.69mm |
| b Min. | 3.5mm |
| r<sub>o</sub> Max. | 0.6mm |
| D<sub>2</sub> Max. | 212.9mm |
| f Max. | 3.1mm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 139mm |
| d<sub>a</sub> Max. | 148mm |
| D<sub>a</sub> Max. | 191mm |
| D<sub>X</sub> (approx) | 215mm |
| C<sub>Y</sub> Max. | 8.4mm |
| C<sub>Z</sub> Min. | 3.1mm |
| r<sub>as</sub> Max. | 2mm |
| r<sub>Nas</sub> Max. | 0.5mm |
| Weight | 3.16 kg |
