SKU: 6024-2Z/VA208-SKF

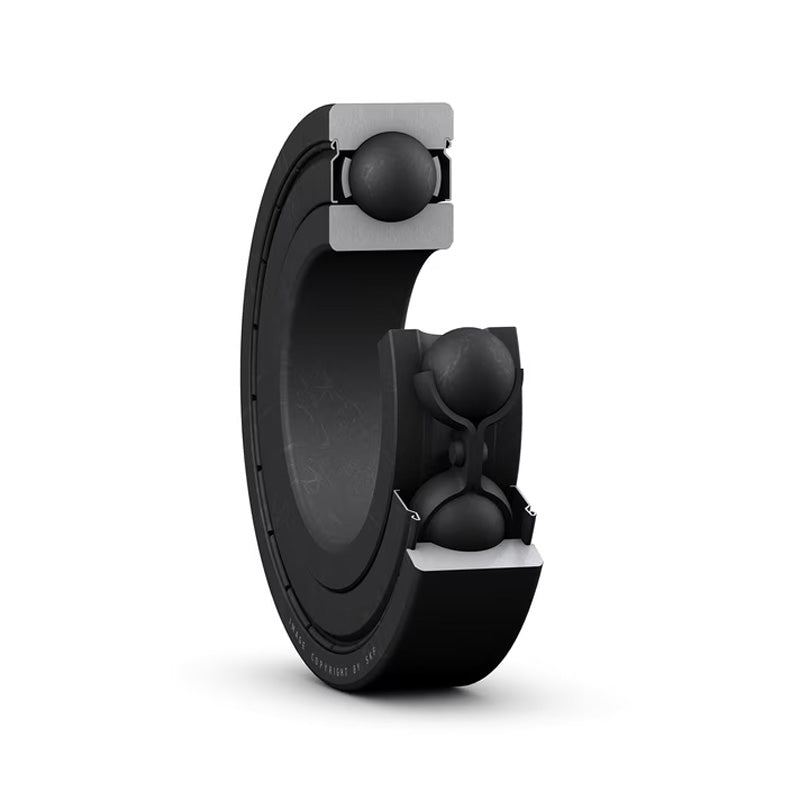

SKF 60242ZVA208 Single Row Deep Groove Ball Bearing High Temperature Type 120x180x28mm
SKF 60242ZVA208 Single Row Deep Groove Ball Bearing High Temperature Type 120x180x28mm
Regular price
£798.91
ex VAT£958.69inc. VAT
Regular price
Sale price
£798.91
ex VAT£958.69
inc. VAT
In stock
Price Break
10+
£711.03
19+
£671.08
29+
£663.10
39+
£655.11
49+
£647.12
74+
£639.13
99+
£599.18
199+
£591.19
249+
£583.20
499+
£575.22
999+
£559.24
Couldn't load pickup availability
Description
Description
|
SKF VA208 Series High Temperature Bearings: Supplied metal shielded are designed for high temperatures up to + 350 degrees Celsius and down to - 150 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for speeds up to 100rpm without maintenance. Internal clearance is C5 and all have a BLACK PHOSPHATED COATING Benefits: High temperature resilience, low maintenance |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 180mm
- Width:
- 28mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| d | 120mm |
|---|---|
| D | 180mm |
| B | 28mm |
| d1 | 139mm |
| D2 | 166mm |
| r1r2 | 2mm |
| Basic load rating Co | 80 kN |
| Weight | 1.9 kg |
| Max operating temp | +250 deg C |
| Min operating temp | -40 deg C |
| Recommended max speed | 100 rpm |
