SKU: 6019NR-NTN

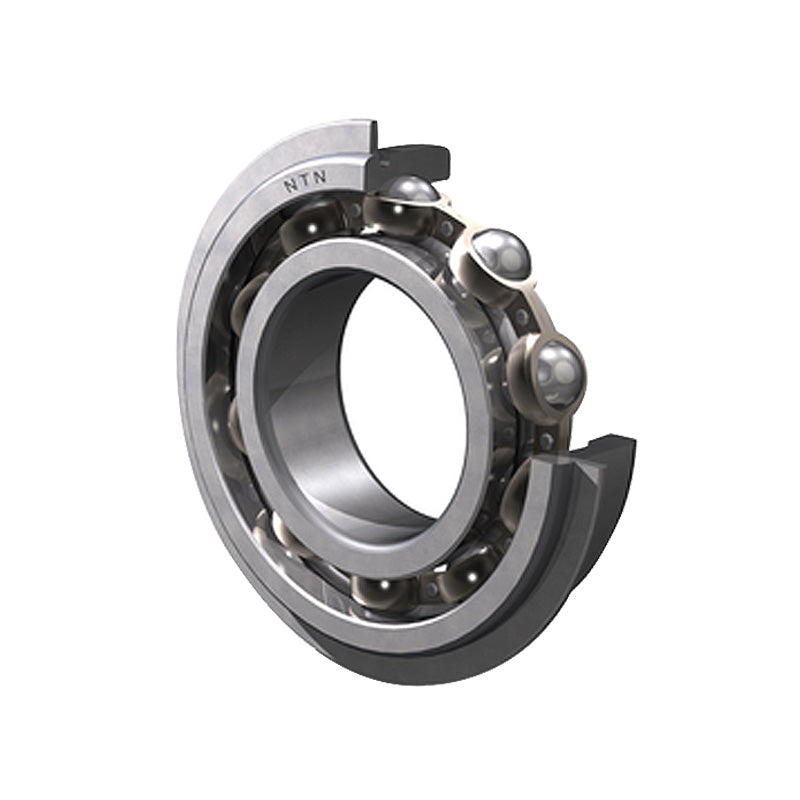

NTN 6019NR Open Type Deep Groove Ball Bearing with Snap Ring 95x145x24mm
NTN 6019NR Open Type Deep Groove Ball Bearing with Snap Ring 95x145x24mm
Regular price
£183.99
ex VAT£220.79inc. VAT
Regular price
Sale price
£183.99
ex VAT£220.79
inc. VAT
Equivalent to: 6019NRCM 9119KG 119KSG 43L19
In stock
Price Break
3+
£163.75
5+
£154.55
10+
£152.71
25+
£150.87
49+
£149.03
74+
£147.19
99+
£137.99
199+
£136.15
249+
£134.31
499+
£132.47
999+
£128.79
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
Equivalent: 6019NRCM 9119KG 119KSG 43L19
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 95mm
- Outside Diameter:
- 145mm
- Width:
- 24mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 95mm |
| D | 145mm |
| B | 24mm |
| r<sub>s</sub> min | 1.5mm |
| rNS Min. | 0.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 67 kN |
| C<sub>or</sub> | 54 kN |
| C<sub>u</sub> | 3.55 kN |
| f<sub>0</sub> | 15.8 kN |
| Grease | 4500 rpm |
| Oil | 5300 rpm |
| --- | Snap Ring Dimensions |
| D<sub>1</sub> Max. | 140.23mm |
| a Max. | 3.71mm |
| b Min. | 3.1mm |
| r<sub>o</sub> Max. | 0.6mm |
| D<sub>2</sub> Max. | 154.7mm |
| f Max. | 2.82mm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 103mm |
| d<sub>a</sub> Max. | 109mm |
| D<sub>a</sub> Max. | 137mm |
| D<sub>X</sub> (approx) | 157mm |
| C<sub>Y</sub> Max. | 6.1mm |
| C<sub>Z</sub> Min. | 2.9mm |
| r<sub>as</sub> Max. | 1.5mm |
| r<sub>Nas</sub> Max. | 0.5mm |
| Weight | 1.08 kg |
