SKU: 6016ZZ/5K-NTN

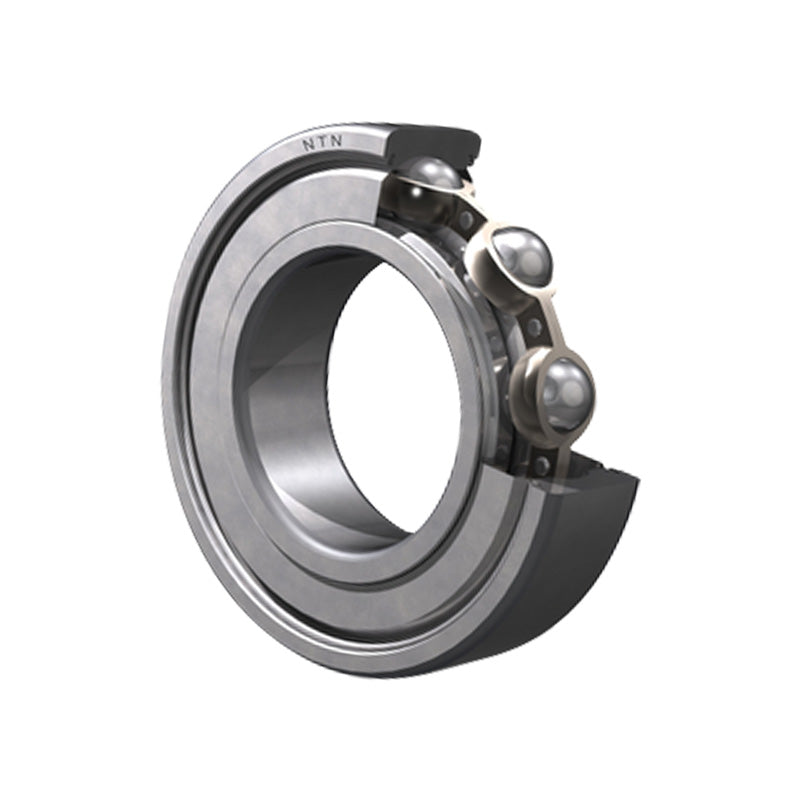

NTN 6016ZZ/5K Metal Shielded Type Deep Groove Ball Bearing 80x125x22mm - Allow 2-3 Days
Equivalent to: 6016ZZCM 6016ZZ 6016ZZ 60162Z 6016ZZ 60162ZR 6016ZZE 6016FF 6016DD 6016DDC 6016KDDC EL802Z EL80ZZ 9116KDD 9116FF 116KSFF 773L16 6116PP
In stock
Price Break
Couldn't load pickup availability
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
Equivalent: 6016ZZCM 6016ZZ 6016ZZ 60162Z 6016ZZ 60162ZR 6016ZZE 6016FF 6016DD 6016DDC 6016KDDC EL802Z EL80ZZ 9116KDD 9116FF 116KSFF 773L16 6116PP
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 125mm
- Width:
- 22mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| --- | Bearing dimensions |
|---|---|
| d | 80mm |
| D | 125mm |
| B | 22mm |
| r<sub>s</sub> min | 1.1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 53 kN |
| C<sub>or</sub> | 40 kN |
| C<sub>u</sub> | 2.91 kN |
| f<sub>0</sub> | 15.6 kN |
| Grease | 5300 rpm |
| Oil | 6200 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 86.5mm |
| d<sub>a</sub> Max. | 91.5mm |
| D<sub>a</sub> Max. | 118.5mm |
| r<sub>as</sub> Max. | 1mm |
| Weight | 0.854 kg |
