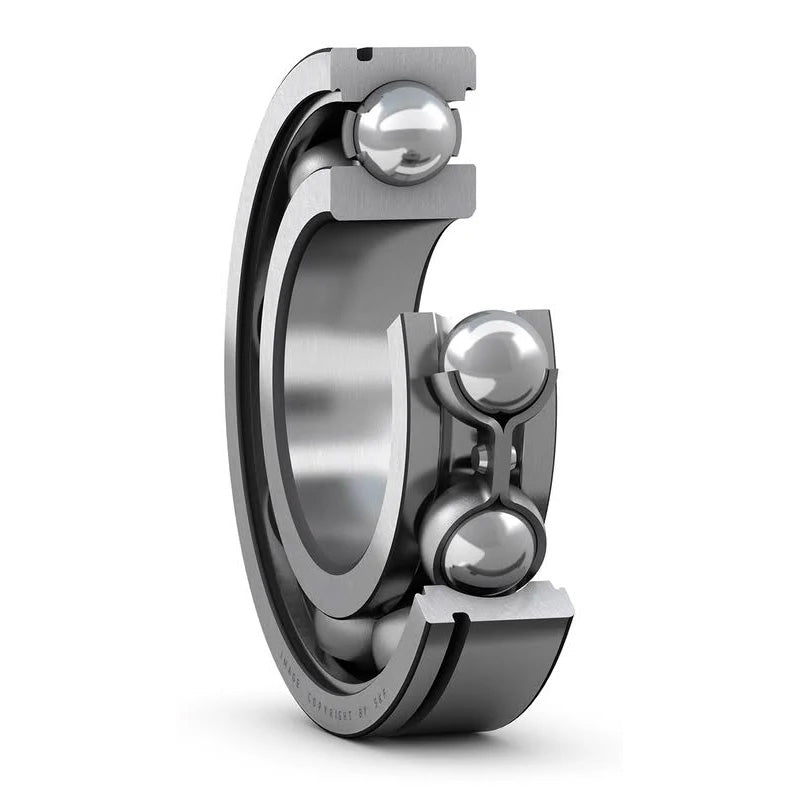

SKF 6014NR Open Type Snap Ring Deep Groove Bearing 70x110x20mm
SKF 6014NR Open Type Snap Ring Deep Groove Bearing 70x110x20mm
Regular price
£96.27
ex VAT£115.52inc. VAT
Regular price
Sale price
£96.27
ex VAT£115.52
inc. VAT
In stock
Price Break
4+
£85.68
10+
£80.87
20+
£79.91
30+
£78.94
50+
£77.98
75+
£77.02
100+
£72.20
200+
£71.24
250+
£70.28
500+
£69.32
1000+
£67.39
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 110mm
- Width:
- 20mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 70mm |
|---|---|
| D | 110mm |
| B | 20mm |
| Dynamic load C | 39.7 kN |
| Static load Co | 31 kN |
| Fatigue load limit Pu | 1.32 kN |
| Reference speed | 13000 rpm |
| Limiting speed | 8000 rpm |
| Weight | 0.6kg |
| Snap ring | SP 110 |
| d1 | 82.8mm |
| D2 | 99.9mm |
| D3 | 106.81mm |
| D4 | 116.6mm |
| b | 2.7mm |
| f | 2.46mm |
| C | 2.87mm |
| r1r2 min | 1.1mm |
| ro max | 0.6mm |
| da min | 76mm |
| Da max | 104mm |
| Db min | 118mm |
| ba min | 3mm |
| Ca max | 5.33mm |
| ra max | 1mm |
| Calc Factor kr | 0.025 |
| fo | 16 |
