SKU: 6010-HT-330

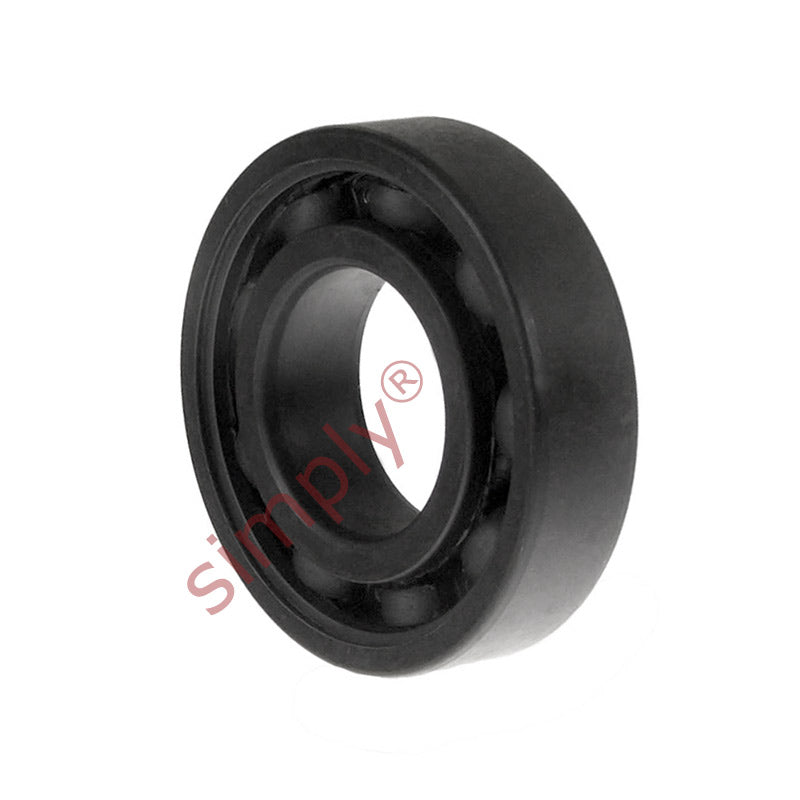

6010HT330 High Temp 330C Open Deep Groove Ball Bearing 50x80x16mm Max 90rpm
6010HT330 High Temp 330C Open Deep Groove Ball Bearing 50x80x16mm Max 90rpm
Regular price
£10.62
ex VAT£12.74inc. VAT
Regular price
Sale price
£10.62
ex VAT£12.74
inc. VAT
Equivalent to: 6010VA201 6010VA208 6010VA228
In stock
Price Break
10+
£9.45
19+
£8.92
29+
£8.81
39+
£8.71
49+
£8.60
74+
£8.50
99+
£7.97
199+
£7.86
249+
£7.75
499+
£7.65
999+
£7.43
Couldn't load pickup availability
Description
Description
HT330 Series High Temperature Bearings: Manufactured with a steel cage to further enhance the bearings performance, supplied un-shielded are designed for high temperatures up to + 330 degrees Celsius and down to - 30 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for low speeds at temperature without maintenance. Internal clearance is increased to compensate expansions and all have a BLACK PHOSPHATE COATING
Benefits: High temperature resilience, low maintenance, can be re-lubricated
Equivalent: 6010VA201 6010VA208 6010VA228
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 80mm
- Width:
- 16mm
- Temperature Range:
- High Temp
Technical
Technical
| Inside diameter d | 50mm |
|---|---|
| Outside diameter D | 80mm |
| Width W | 16mm |
| Static load max | 9.02 kN |
| Max operating temperature | 330 deg Celcius |
| Maximum speed | 90 rpm |
| Weight | 260 g |
