SKU: 6009-NTN

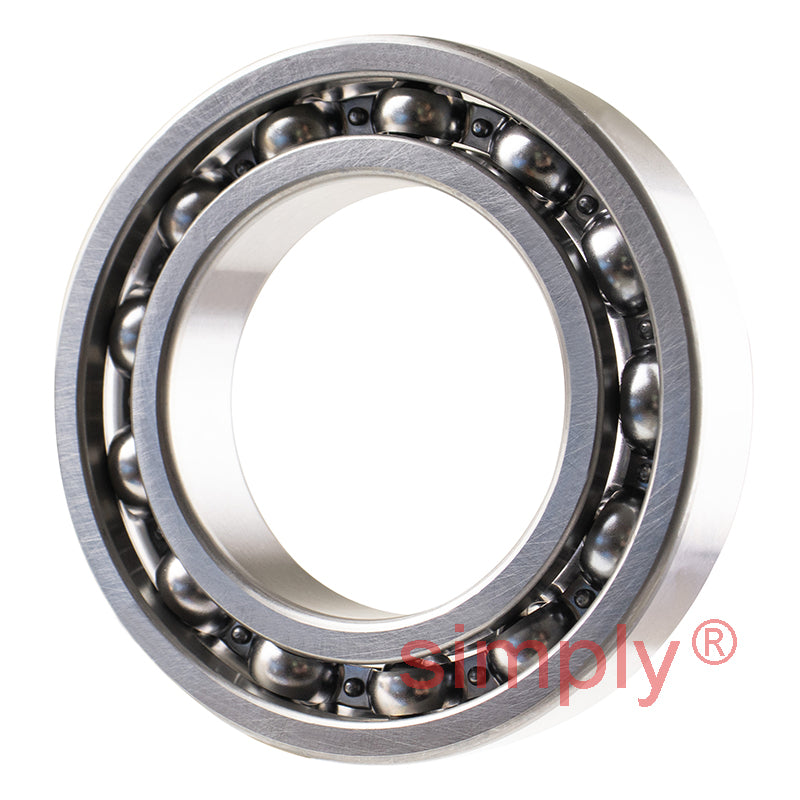

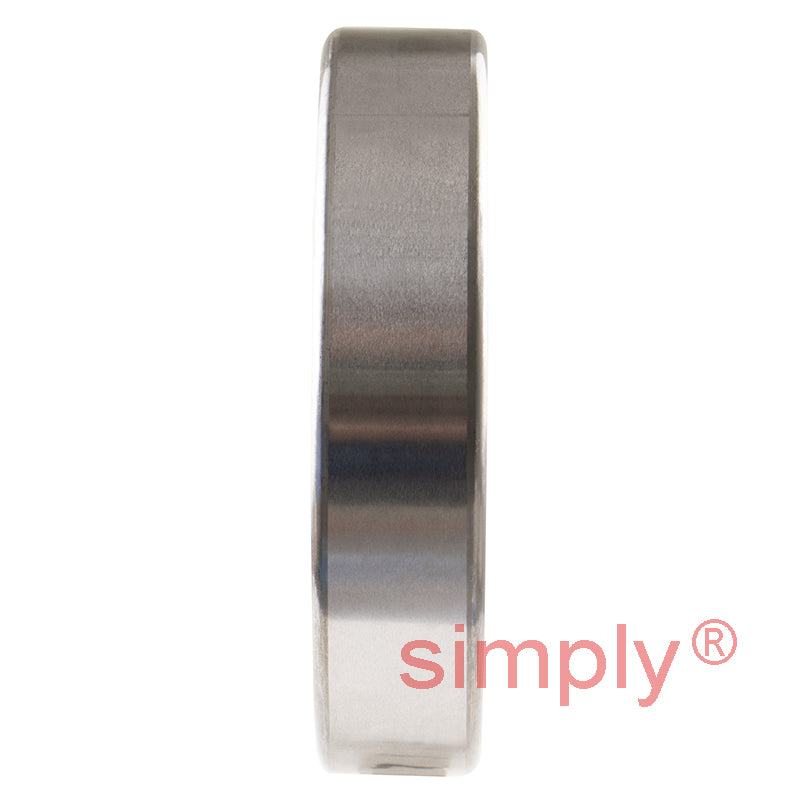

NTN 6009 Open Type Deep Groove Ball Bearing 45x75x16mm

NTN 6009 Open Type Deep Groove Ball Bearing 45x75x16mm
£15.70 ex VAT£18.84inc. VAT
£15.70 ex VAT£18.84 inc. VAT
Sale Sold out

Equivalent to: 6009CM 9109K 9109 109KS 6109 3L09 EL45 ELL45

In stock

Price Break
3+ £13.97
5+ £13.19
10+ £13.03
25+ £12.87
49+ £12.72
74+ £12.56
99+ £11.78
199+ £11.62
249+ £11.46
499+ £11.30
999+ £10.99
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.


Equivalent: 6009CM 9109K 9109 109KS 6109 3L09 EL45 ELL45
Brand / Quality:
NTN - High Quality
Inside Diameter:
45mm
Outside Diameter:
75mm
Width:
16mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Bearing dimensions
d 45mm
D 75mm
B 16mm
r<sub>s</sub> min 1mm
--- Loads angles and speeds
C<sub>r</sub> 23.2 kN
C<sub>or</sub> 15.1 kN
C<sub>u</sub> 1.16 kN
f<sub>0</sub> 15.3 kN
Grease 9200 rpm
Oil 11000 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 50mm
D<sub>a</sub> Max. 70mm
r<sub>as</sub> Max. 1mm
Weight 0.237 kg
