SKU: 6008NR-NTN

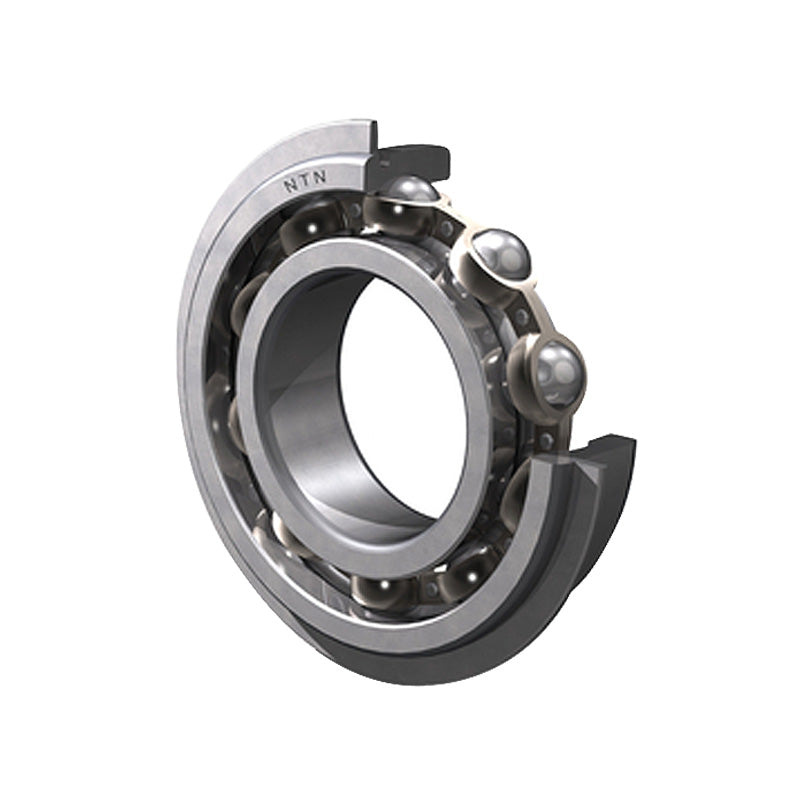

NTN 6008NR Open Type Deep Groove Ball Bearing with Snap Ring 40x68x15mm
NTN 6008NR Open Type Deep Groove Ball Bearing with Snap Ring 40x68x15mm
Regular price
£28.94
ex VAT£34.73inc. VAT
Regular price
Sale price
£28.94
ex VAT£34.73
inc. VAT
Equivalent to: 6008NRCM 9108KG 108KSG 43L08
In stock
Price Break
3+
£25.76
5+
£24.31
10+
£24.02
25+
£23.73
49+
£23.44
74+
£23.15
99+
£21.71
199+
£21.42
249+
£21.13
499+
£20.84
999+
£20.26
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
Equivalent: 6008NRCM 9108KG 108KSG 43L08
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 68mm
- Width:
- 15mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 40mm |
| D | 68mm |
| B | 15mm |
| r<sub>s</sub> min | 1mm |
| rNS Min. | 0.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 18.6 kN |
| C<sub>or</sub> | 11.5 kN |
| C<sub>u</sub> | 0.89 kN |
| f<sub>0</sub> | 15.2 kN |
| Grease | 10000 rpm |
| Oil | 12000 rpm |
| --- | Snap Ring Dimensions |
| D<sub>1</sub> Max. | 64.82mm |
| a Max. | 2.49mm |
| b Min. | 1.9mm |
| r<sub>o</sub> Max. | 0.6mm |
| D<sub>2</sub> Max. | 74.6mm |
| f Max. | 1.7mm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 45mm |
| d<sub>a</sub> Max. | 47mm |
| D<sub>a</sub> Max. | 63mm |
| D<sub>X</sub> (approx) | 76mm |
| C<sub>Y</sub> Max. | 3.8mm |
| C<sub>Z</sub> Min. | 1.7mm |
| r<sub>as</sub> Max. | 1mm |
| r<sub>Nas</sub> Max. | 0.5mm |
| Weight | 0.19 kg |
