SKU: 6007LLH-NTN

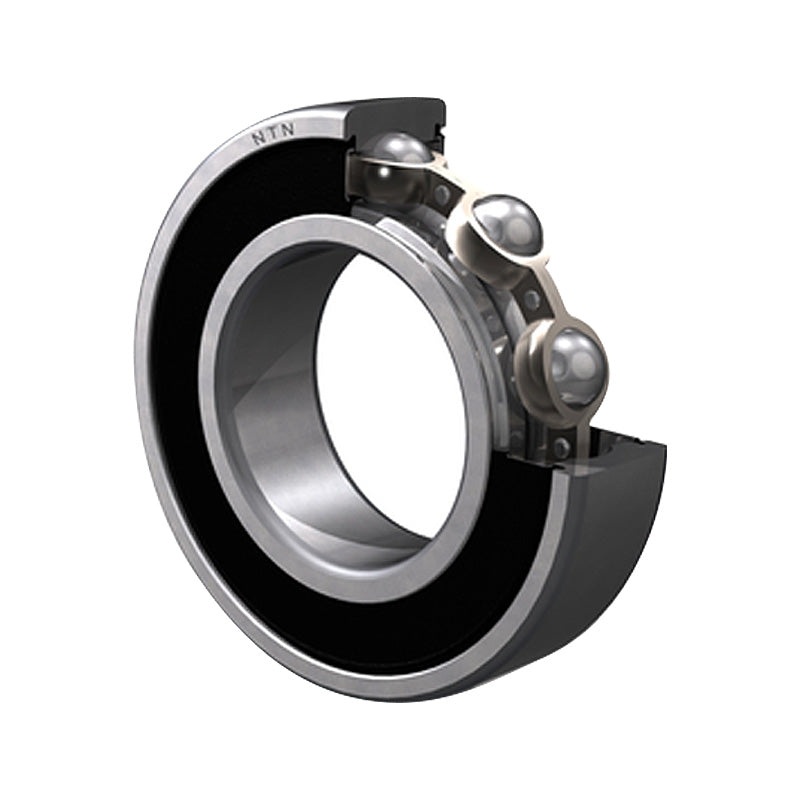

NTN 6007LLH Low Torque Rubber Sealed Type Deep Groove Ball Bearing 35x62x14mm
NTN 6007LLH Low Torque Rubber Sealed Type Deep Groove Ball Bearing 35x62x14mm
Regular price
£15.29
ex VAT£18.35inc. VAT
Regular price
Sale price
£15.29
ex VAT£18.35
inc. VAT
In stock
Price Break
3+
£13.61
5+
£12.84
10+
£12.69
25+
£12.54
49+
£12.38
74+
£12.23
99+
£11.47
199+
£11.31
249+
£11.16
499+
£11.01
999+
£10.70
Share this product
Description
Description
Low Torque Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has a similar construction to a contact sealed bearing with two rubber seals in contact with the inner ring but has a significant difference with a specially designed lip on the edge of the seal that prevents foreign matter penetration.
Benefits: High-running accuracy and high-speed operation, Low torque construction, excellent grease sealing at low speeds, excellent protection against dust and water.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 62mm
- Width:
- 14mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 35mm |
| D | 62mm |
| B | 14mm |
| r<sub>s</sub> min | 1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 17.7 kN |
| C<sub>or</sub> | 10.3 kN |
| C<sub>u</sub> | 0.805 kN |
| f<sub>0</sub> | 14.8 kN |
| Speed | 8200 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 40mm |
| d<sub>a</sub> Max. | 42mm |
| D<sub>a</sub> Max. | 57mm |
| r<sub>as</sub> Max. | 1mm |
| Weight Kg | 0.155 kg |
