SKU: 6007-NTN

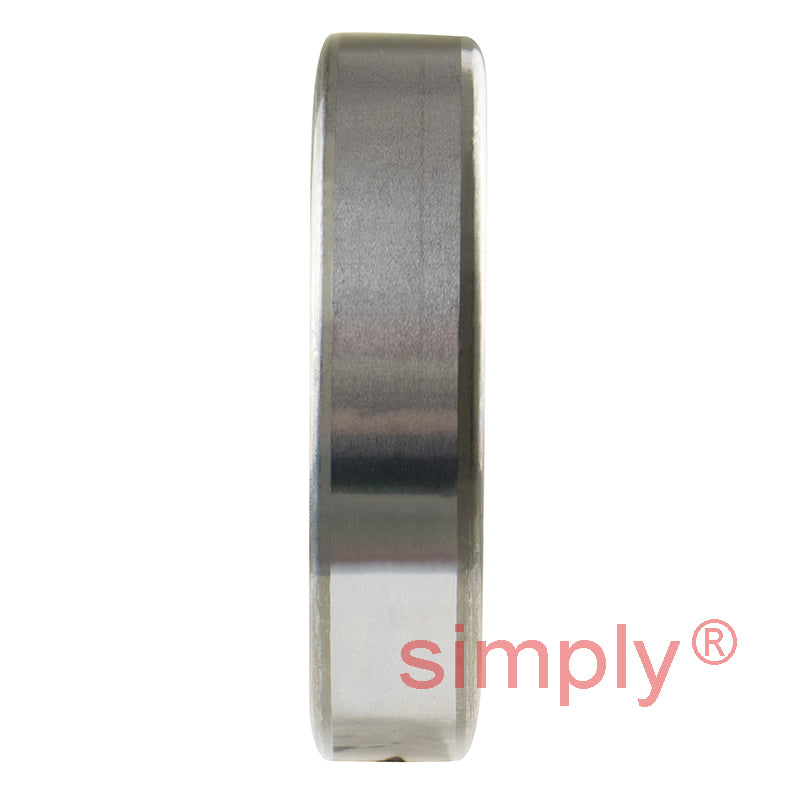

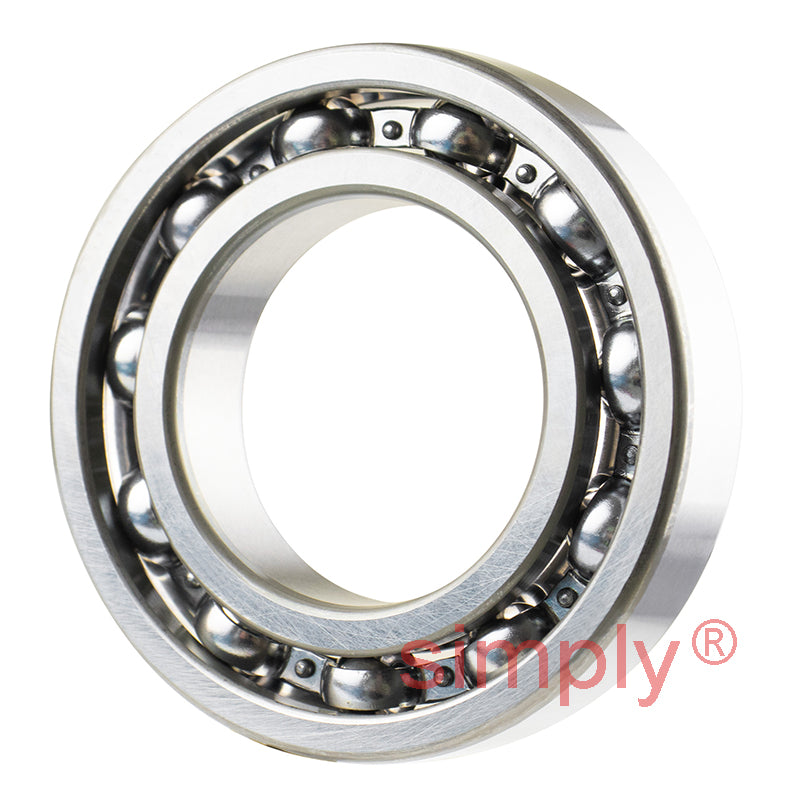

NTN 6007 Open Type Deep Groove Ball Bearing 35x62x14mm
NTN 6007 Open Type Deep Groove Ball Bearing 35x62x14mm
Regular price
£9.89
ex VAT£11.87inc. VAT
Regular price
Sale price
£9.89
ex VAT£11.87
inc. VAT
Equivalent to: 6007CM 9107K 9107 107KS 6107 3L07 EL35 ELL35
In stock
Price Break
3+
£8.80
5+
£8.31
10+
£8.21
25+
£8.11
49+
£8.01
74+
£7.91
99+
£7.42
199+
£7.32
249+
£7.22
499+
£7.12
999+
£6.92
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 6007CM 9107K 9107 107KS 6107 3L07 EL35 ELL35
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 62mm
- Width:
- 14mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 35mm |
| D | 62mm |
| B | 14mm |
| r<sub>s</sub> min | 1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 17.7 kN |
| C<sub>or</sub> | 10.3 kN |
| C<sub>u</sub> | 0.805 kN |
| f<sub>0</sub> | 14.8 kN |
| Grease | 12000 rpm |
| Oil | 14000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 40mm |
| D<sub>a</sub> Max. | 57mm |
| r<sub>as</sub> Max. | 1mm |
| Weight | 0.155 kg |
