SKU: 6006-NTN

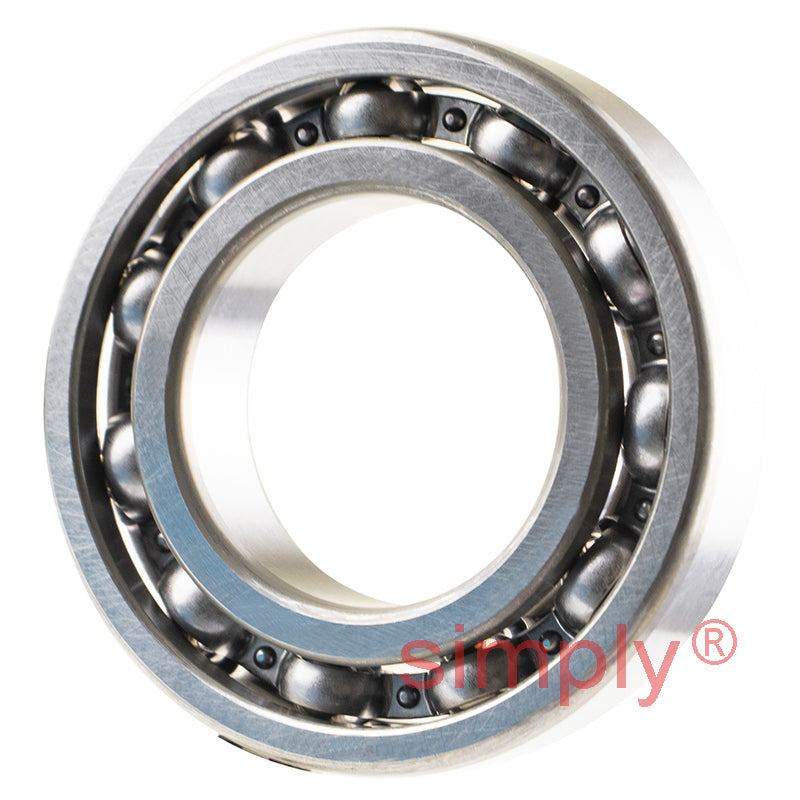

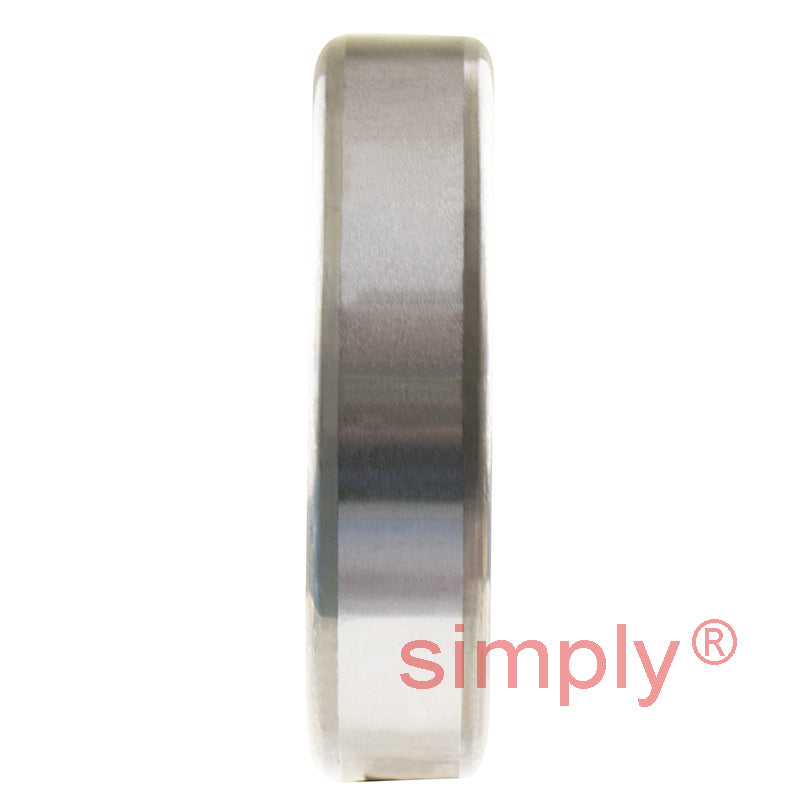

NTN 6006 Open Type Deep Groove Ball Bearing 30x55x13mm
NTN 6006 Open Type Deep Groove Ball Bearing 30x55x13mm
Regular price
£7.97
ex VAT£9.56inc. VAT
Regular price
Sale price
£7.97
ex VAT£9.56
inc. VAT
Equivalent to: 6006CM 9106K 9106 106KS 6106 3L06 EL30 ELL30
In stock
Price Break
3+
£7.09
5+
£6.69
10+
£6.62
25+
£6.54
49+
£6.46
74+
£6.38
99+
£5.98
199+
£5.90
249+
£5.82
499+
£5.74
999+
£5.58
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 6006CM 9106K 9106 106KS 6106 3L06 EL30 ELL30
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 55mm
- Width:
- 13mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 30mm |
| D | 55mm |
| B | 13mm |
| r<sub>s</sub> min | 1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 14.7 kN |
| C<sub>or</sub> | 8.3 kN |
| C<sub>u</sub> | 0.65 kN |
| f<sub>0</sub> | 14.8 kN |
| Grease | 13000 rpm |
| Oil | 15000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 35mm |
| D<sub>a</sub> Max. | 50mm |
| r<sub>as</sub> Max. | 1mm |
| Weight | 0.116 kg |
