SKU: 6005NR-NSK

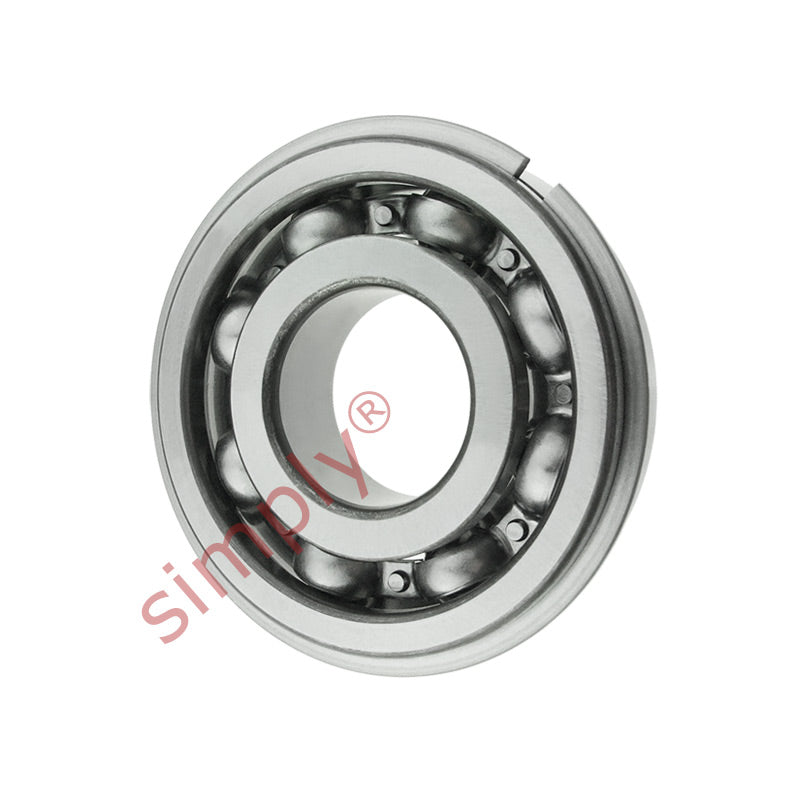

NSK 6005NR Open Type Deep Groove Ball Bearing With Snap Ring 25x47x12mm
NSK 6005NR Open Type Deep Groove Ball Bearing With Snap Ring 25x47x12mm
Regular price
£7.89
ex VAT£9.47inc. VAT
Regular price
Sale price
£7.89
ex VAT£9.47
inc. VAT
In stock
Price Break
4+
£7.02
10+
£6.63
20+
£6.55
30+
£6.47
50+
£6.39
75+
£6.31
100+
£5.92
200+
£5.84
250+
£5.76
500+
£5.68
1000+
£5.52
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 47mm
- Width:
- 12mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 25mm |
|---|---|
| D | 47mm |
| B | 12mm |
| r min | 0.6mm |
| Dynamic load Cr | 10100 N (1030 kgf) |
| Static load Cor | 5850 N (595 kgf) |
| Factor | 14.5 |
| Speed in grease | 15000 rpm |
| Speed in oil | 18000 rpm |
| a max | 2.06mm |
| b min | 1.35mm |
| D1 max | 44.6mm |
| ro max | 0.4mm |
| rN min | 0.5mm |
| D2 max | 52.7mm |
| f max | 1.12mm |
| da2 min | 29mm |
| da2max | 30mm |
| Da2max | 43mm |
| ra max | 0.6mm |
| Dx min | 53.5mm |
| Cy max | 2.9mm |
| Weight | 0.079 kg |
