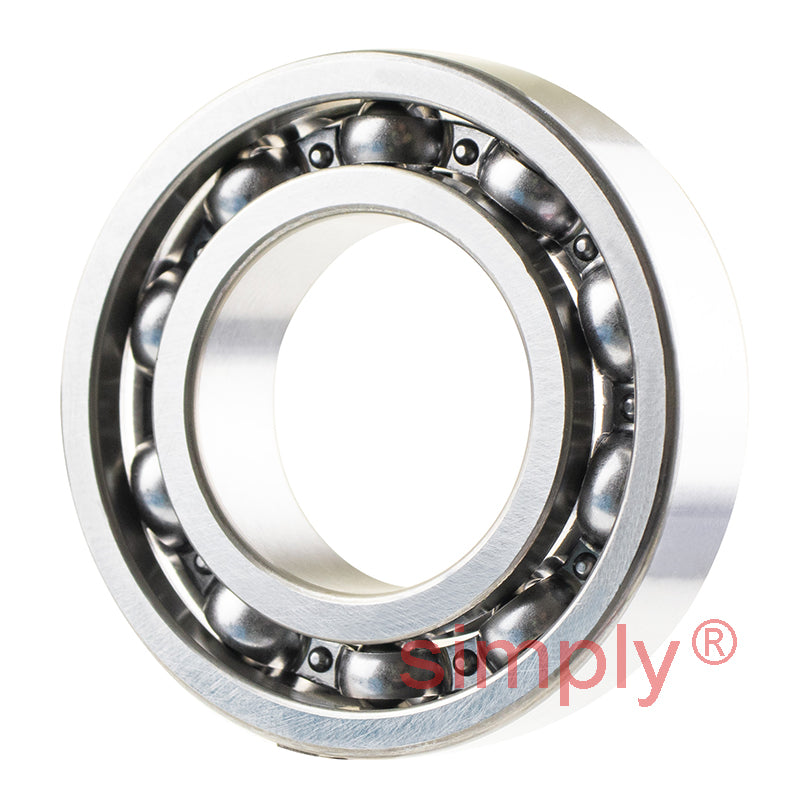

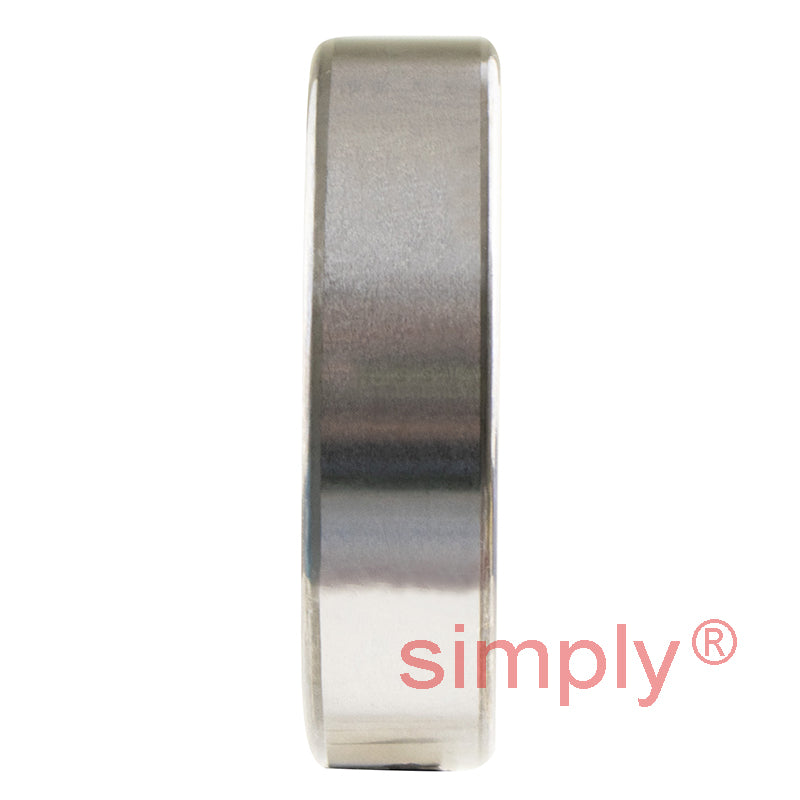

NTN 6005 Open Type Deep Groove Ball Bearing 25x47x12mm
NTN 6005 Open Type Deep Groove Ball Bearing 25x47x12mm
Regular price
£5.34
ex VAT£6.41inc. VAT
Regular price
Sale price
£5.34
ex VAT£6.41
inc. VAT
Equivalent to: 6005CM 9105K 9105 105KS 6105 3L05 EL25 ELL25
In stock
Price Break
3+
£4.75
5+
£4.49
10+
£4.43
25+
£4.38
49+
£4.33
74+
£4.27
99+
£4.01
199+
£3.95
249+
£3.90
499+
£3.84
999+
£3.74
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 6005CM 9105K 9105 105KS 6105 3L05 EL25 ELL25
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 47mm
- Width:
- 12mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 25mm |
| D | 47mm |
| B | 12mm |
| r<sub>s</sub> min | 0.6mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 11.2 kN |
| C<sub>or</sub> | 5.85 kN |
| C<sub>u</sub> | 0.38 kN |
| f<sub>0</sub> | 14.5 kN |
| Grease | 15000 rpm |
| Oil | 18000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 29mm |
| D<sub>a</sub> Max. | 43mm |
| r<sub>as</sub> Max. | 0.6mm |
| Weight | 0.08 kg |
