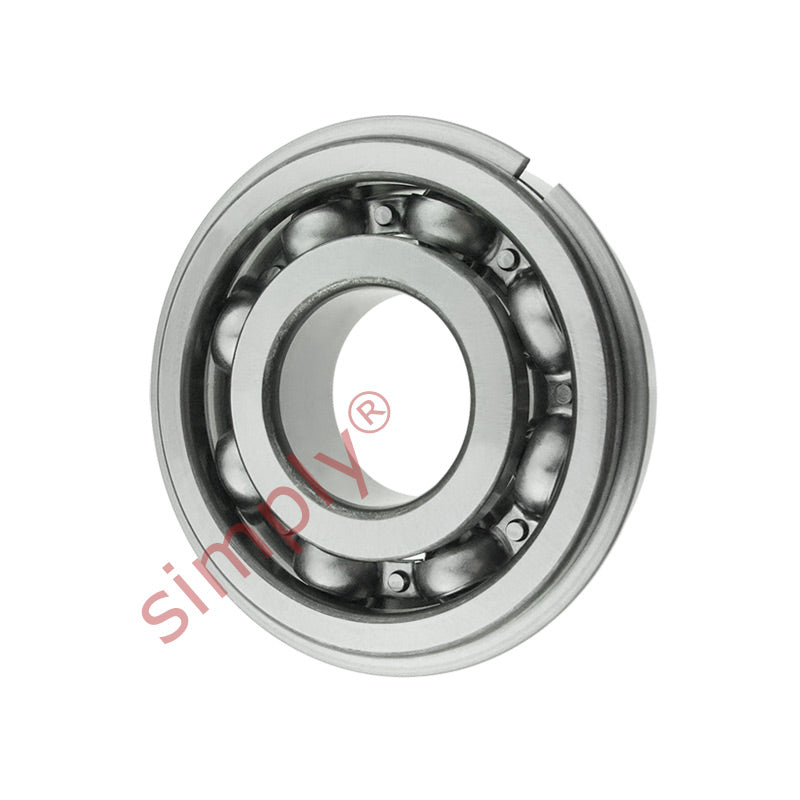

NSK 6004NR Open Type Deep Groove Ball Bearing With Snap Ring 20x42x12mm
NSK 6004NR Open Type Deep Groove Ball Bearing With Snap Ring 20x42x12mm
Regular price
£16.16
ex VAT£19.39inc. VAT
Regular price
Sale price
£16.16
ex VAT£19.39
inc. VAT
In stock
Price Break
4+
£14.38
10+
£13.57
20+
£13.41
30+
£13.25
50+
£13.09
75+
£12.93
100+
£12.12
200+
£11.96
250+
£11.79
500+
£11.63
1000+
£11.31
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 42mm
- Width:
- 12mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring

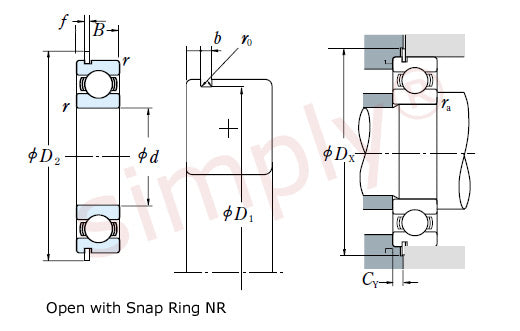

Technical
Technical
| d | 20mm |
|---|---|
| D | 42mm |
| B | 12mm |
| r min | 0.6mm |
| Dynamic load Cr | 9400 N (955 kgf) |
| Static load Cor | 5000 N (510 kgf) |
| Factor | 13.8 |
| Speed in grease | 18000 rpm |
| Speed in oil | 20000 rpm |
| a max | 2.06mm |
| b min | 1.35mm |
| D1 max | 39.75mm |
| ro max | 0.4mm |
| rN min | 0.5mm |
| D2 max | 46.3mm |
| f max | 1.12mm |
| da2 min | 24mm |
| da2max | 25.5mm |
| Da2max | 38mm |
| ra max | 0.6mm |
| Dx min | 47mm |
| Cy max | 2.9mm |
| Weight | 0.068 kg |
