SKU: 6003-2NSENR-NACHI

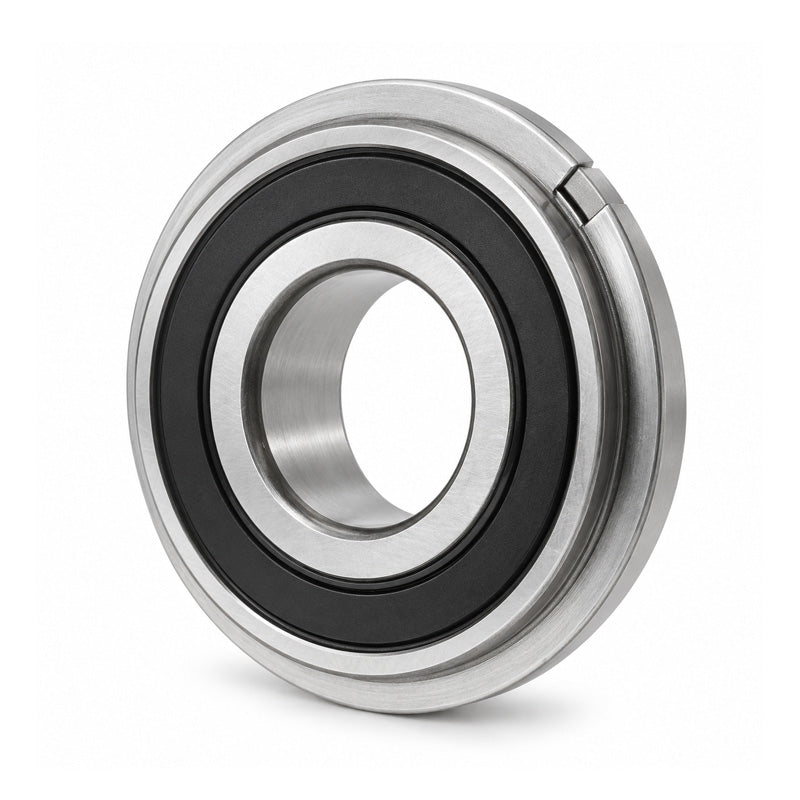

NACHI 60032NSENR Contact Rubber Sealed Deep Groove Ball Bearing with Snap Ring 17x35x10mm
NACHI 60032NSENR Contact Rubber Sealed Deep Groove Ball Bearing with Snap Ring 17x35x10mm
Regular price
£17.52
ex VAT£21.02inc. VAT
Regular price
Sale price
£17.52
ex VAT£21.02
inc. VAT
Equivalent to: 6003NSENR
In stock
Price Break
10+
£15.59
19+
£14.72
29+
£14.54
39+
£14.37
49+
£14.19
74+
£14.02
99+
£13.14
199+
£12.96
249+
£12.79
499+
£12.61
999+
£12.26
Couldn't load pickup availability
Description
Description
|
NACHI Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with inner ring. Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water. |
Equivalent: 6003NSENR
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 35mm
- Width:
- 10mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| Inside Diameter d | 17mm |
|---|---|
| Outside Diameter D | 35mm |
| Width B | 10mm |
| Min radius r | 0.3mm |
| Dynamic load | 6000 kN |
| Static load | 3250 kN |
| Max speed | 22000 rpm |
| da min | 19mm |
| Da max | 33mm |
| ra max | 0.3mm |
| Weight | 0.039 kg |
