SKU: 60-3-BB-NO30-RENOLD
Renold Blue Box 60-3-NO30 ANSI / AS Triplex Chain Double Cranked Link 3/4 inch Pitch
Renold Blue Box 60-3-NO30 ANSI / AS Triplex Chain Double Cranked Link 3/4 inch Pitch
Regular price
£31.79
ex VAT£38.15inc. VAT
Regular price
Sale price
£31.79
ex VAT£38.15
inc. VAT
In stock
Price Break
10+
£28.29
19+
£26.70
29+
£26.39
39+
£26.07
49+
£25.75
74+
£25.43
99+
£23.84
199+
£23.52
249+
£23.21
499+
£22.89
999+
£22.25
Couldn't load pickup availability
Description
Description

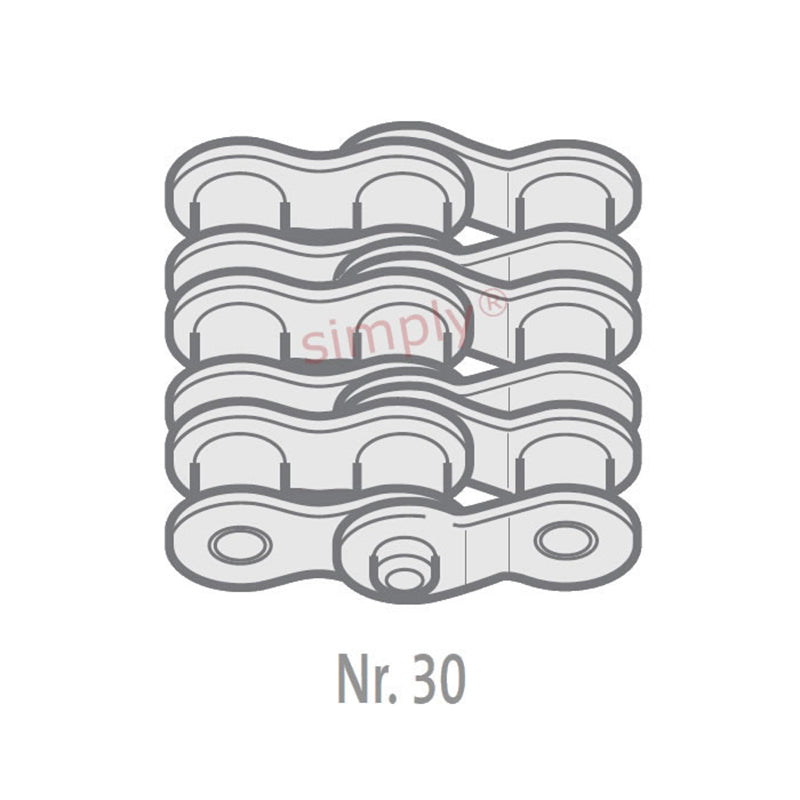

| Renold No. 30 ANSI Triplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Pitch (A) | 0.75 inch |
|---|---|
| Pitch (A) | 19.05mm |
| Inside Width min (B) | 12.57mm |
| Roller Diameter max (C) | 11.91mm |
| Plate Height max (D) | 17.5mm |
| Plate Width Inner max (E) | 2.45mm |
| Plate Width Outer max (F) | 2.45mm |
| Pin Diameter max (G) | 5.94mm |
| Pin Length max (H2) | 70.9mm |
| Connecting Link Extension max (J) | 2.6mm |
| Transverse Pitch nom (K) | 22.78mm |
| ISO606 Tensile Strength min | 93900 N |
| Weight | 1.51kg/m |
