SKU: 60-1-SYN-NO30-RENOLD
Renold Synergy 60-1-NO30 ANSI / AS Simplex Chain Double Cranked Link 3/4 inch Pitch
Renold Synergy 60-1-NO30 ANSI / AS Simplex Chain Double Cranked Link 3/4 inch Pitch
Regular price
£24.52
ex VAT£29.42inc. VAT
Regular price
Sale price
£24.52
ex VAT£29.42
inc. VAT
In stock
Price Break
10+
£21.82
19+
£20.60
29+
£20.35
39+
£20.11
49+
£19.86
74+
£19.62
99+
£18.39
199+
£18.14
249+
£17.90
499+
£17.65
999+
£17.16
Couldn't load pickup availability
Description
Description

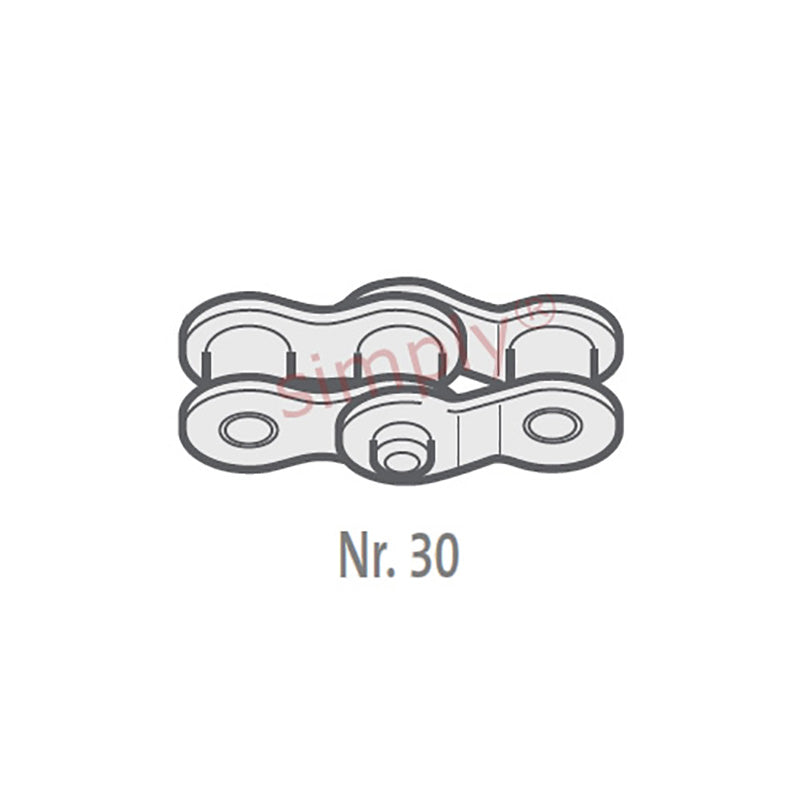

| Renold No. 30 ANSI Simplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Pitch (A) | 0.75 inch |
|---|---|
| Pitch (A) | 19.05mm |
| Inside Width min (B) | 12.57mm |
| Roller Diameter max (C) | 11.91mm |
| Plate Height max (D) | 17.5mm |
| Plate Width Inner max (E) | 2.45mm |
| Plate Width Outer max (F) | 2.45mm |
| Pin Diameter max (G) | 5.94mm |
| Pin Length max (H1) | 25.3mm |
| Connecting Link Extension max (J) | 2.6mm |
| ISO606 Tensile Strength min | 31300 N |
| Weight | 1.5kg/m |
