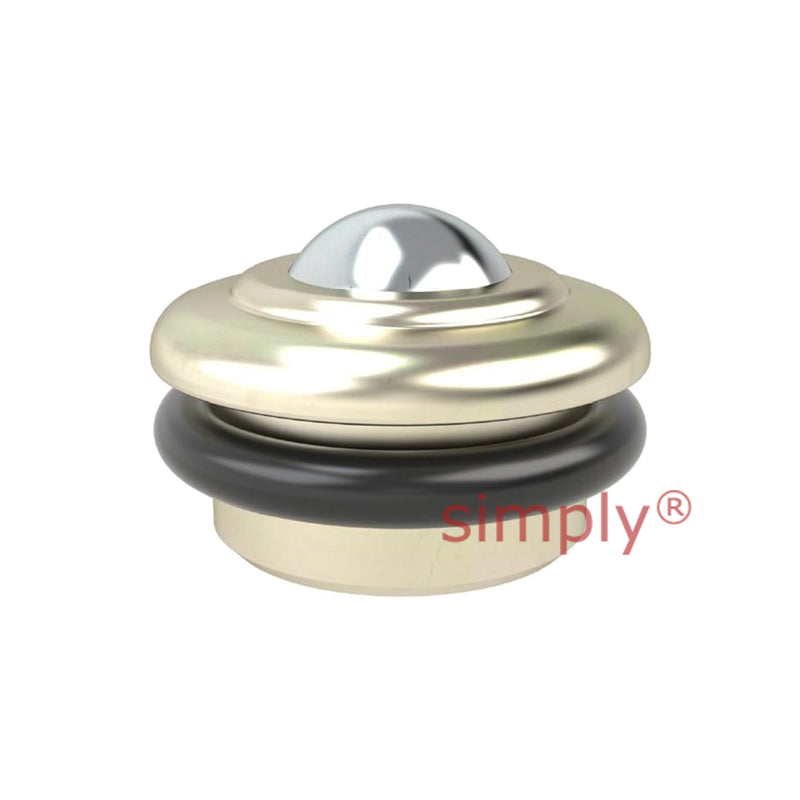

High-Performance Medium Duty Ball Transfer Unit with O-Ring with 11.5mm Steel Ball - Load Capacity 27kg - Allow 2-3 Days

Push Fit Medium-Duty Stainless Steel Ball Transfer Unit: Push fit ball transfer units are designed for multi-direction materials handling solutions. This series of transfer units often named recess mount ball transfer units, consist of a large load-bearing stainless steel ball running on several smaller support balls contained within a recessed zinc-plated case-hardened steel housing, allowing the large ball to rotate freely. Push-fit ball transfer units effortlessly slot into pre-defined holes, simplifying the assembly process. They are commonly used on conveyor setups and are an ideal solution for the smooth and precise moving of loads.
Benefits: Greatly reduces friction and allows heavy loads to be moved with a minimum of effort. Corrosion-resistant stainless steel. Easy assembly, reducing downtime.

This ball transfer unit is supplied with an o-ring. The inclusion of an O-ring provides enhanced sealing and protection against contaminants, ensuring optimal performance and longevity in challenging environments.

Brand / Quality:

Simply Ball Transfer Units

Outside Diameter:

15.9mm
