SKU: 54317-SKF

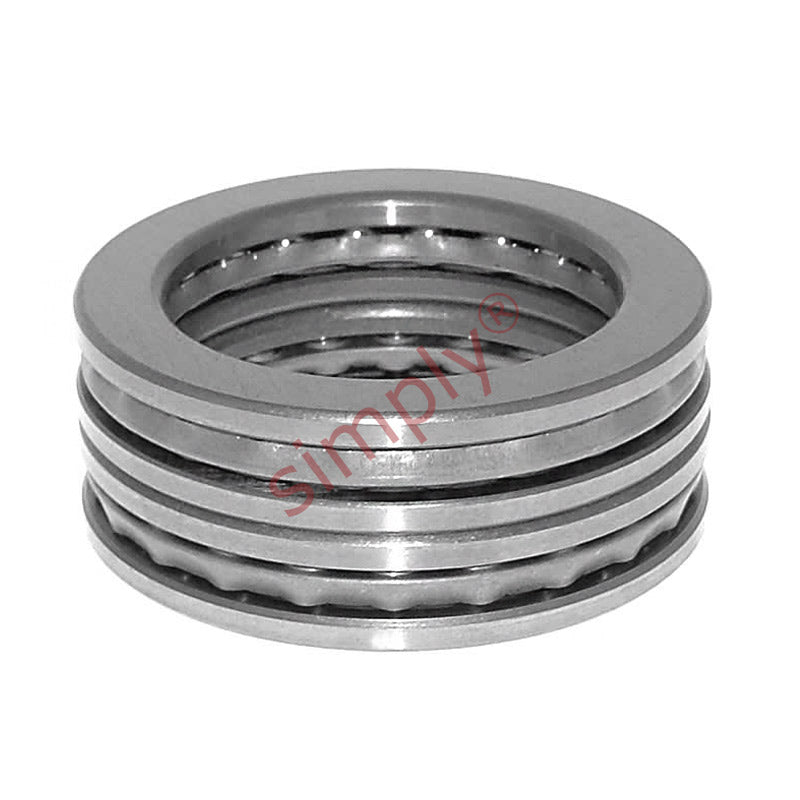

SKF 54317 Double Thrust Ball Bearing with Spherical Housing Washers 70x150x105mm
SKF 54317 Double Thrust Ball Bearing with Spherical Housing Washers 70x150x105mm
Regular price
£750.47
ex VAT£900.56inc. VAT
Regular price
Sale price
£750.47
ex VAT£900.56
inc. VAT
In stock
Price Break
10+
£667.92
19+
£630.40
29+
£622.89
39+
£615.39
49+
£607.88
74+
£600.38
99+
£562.85
199+
£555.35
249+
£547.84
499+
£540.34
999+
£525.33
Share this product
Description
Description
|
SKF Double Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of five parts, a top, bottom and middle plate with annular grooves in them and two caged ball bearing assemblies that are sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in two directions. Clearance is provided in the bore of Centre of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 150mm
- Width:
- 105mm
Technical
Technical
| d | 70mm |
|---|---|
| D | 150mm |
| H1 | 105mm |
| Dynamic load C | 190 kN |
| Static load Co | 465 kN |
| Fatigue load limit Pu | 16 kN |
| Minimum load factor A | 1.1 |
| Reference speed | 1600 rpm |
| Limiting speed | 2200 rpm |
| Weight | 7.95 kg |
| Seating washer | U317 |
| D1 | 88mm |
| D2 | 115mm |
| D3 | 155mm |
| H | 95.2mm |
| B | 19mm |
| C | 17.5mm |
| R | 112mm |
| s | 39mm |
| r1r2 | 1.5mm |
| r3r4 | 1mm |
| da | 85mm |
| Da max | 115mm |
| ra max | 1.5mm |
| rb max | 1mm |
