SKU: 54309-SKF

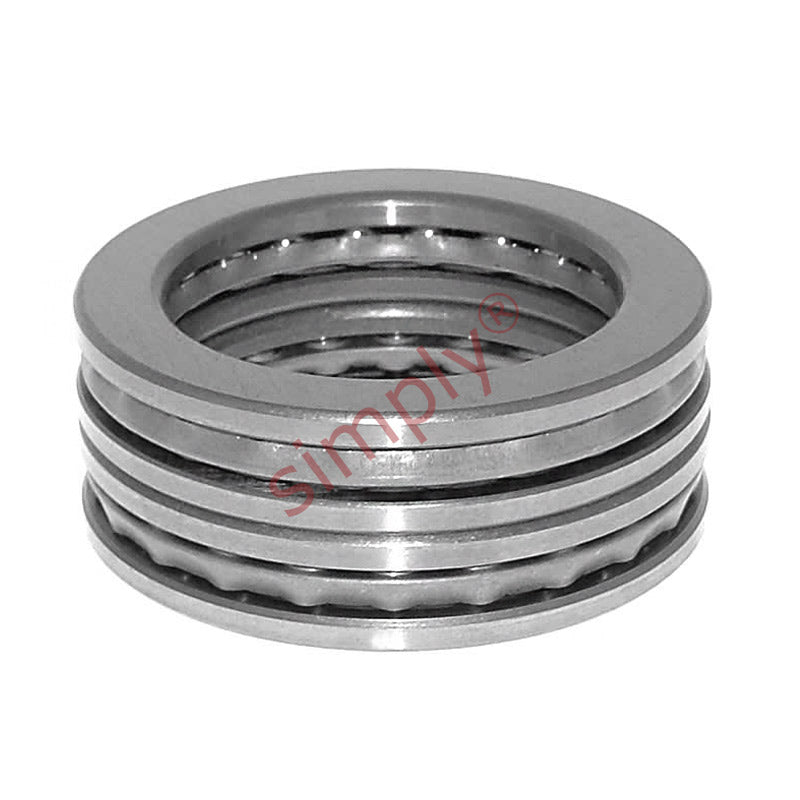

SKF 54309 Double Thrust Ball Bearing with Spherical Housing Washers 35x85x62mm
SKF 54309 Double Thrust Ball Bearing with Spherical Housing Washers 35x85x62mm
Regular price
£210.33
ex VAT£252.40inc. VAT
Regular price
Sale price
£210.33
ex VAT£252.40
inc. VAT
In stock
Price Break
10+
£187.20
19+
£176.68
29+
£174.58
39+
£172.47
49+
£170.37
74+
£168.27
99+
£157.75
199+
£155.65
249+
£153.54
499+
£151.44
999+
£147.23
Share this product
Description
Description
|
SKF Double Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of five parts, a top, bottom and middle plate with annular grooves in them and two caged ball bearing assemblies that are sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in two directions. Clearance is provided in the bore of Centre of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 85mm
- Width:
- 62mm
Technical
Technical
| d | 35mm |
|---|---|
| D | 85mm |
| H1 | 62mm |
| Dynamic load C | 76.1 kN |
| Static load Co | 153 kN |
| Fatigue load limit Pu | 5.6 kN |
| Minimum load factor A | 0.12 |
| Reference speed | 2800 rpm |
| Limiting speed | 4000 rpm |
| Weight | 1.6 kg |
| Seating washer | U309 |
| D1 | 47mm |
| D2 | 65mm |
| D3 | 90mm |
| H | 56.2mm |
| B | 12mm |
| C | 10mm |
| R | 64mm |
| s | 21mm |
| r1r2 | 1mm |
| r3r4 | 0.6mm |
| da | 45mm |
| Da max | 65mm |
| ra max | 1mm |
| rb max | 0.6mm |
