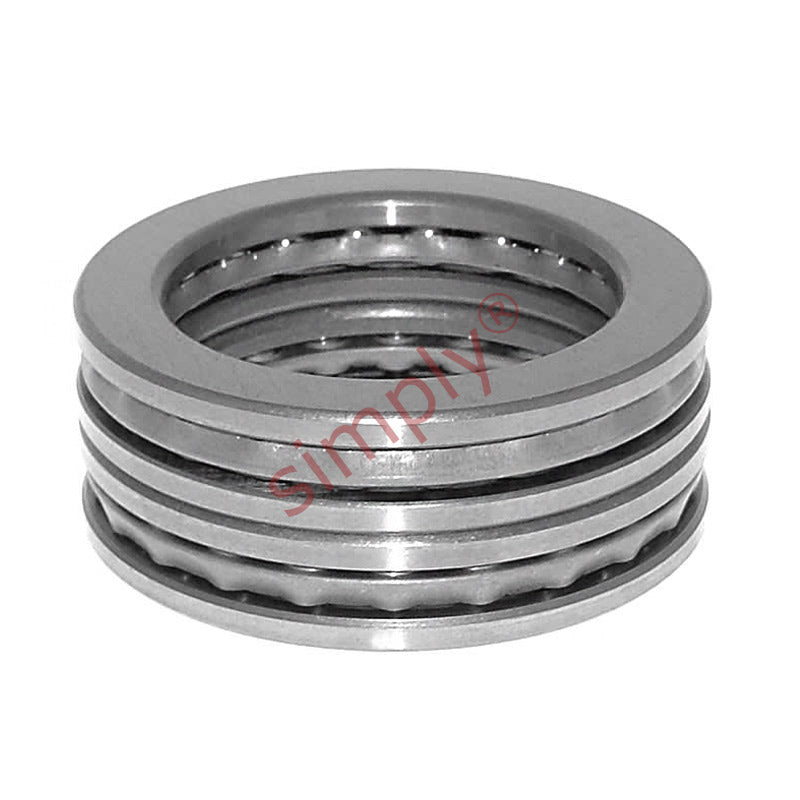

SKF 54306 Double Thrust Ball Bearing with Spherical Housing Washers 25x60x46mm
SKF 54306 Double Thrust Ball Bearing with Spherical Housing Washers 25x60x46mm
Regular price
£123.25
ex VAT£147.90inc. VAT
Regular price
Sale price
£123.25
ex VAT£147.90
inc. VAT
In stock
Price Break
10+
£109.69
19+
£103.53
29+
£102.29
39+
£101.06
49+
£99.83
74+
£98.60
99+
£92.43
199+
£91.20
249+
£89.97
499+
£88.74
999+
£86.27
Share this product
Description
Description
|
SKF Double Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of five parts, a top, bottom and middle plate with annular grooves in them and two caged ball bearing assemblies that are sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in two directions. Clearance is provided in the bore of Centre of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 60mm
- Width:
- 46mm
Technical
Technical
| d | 25mm |
|---|---|
| D | 60mm |
| H1 | 46mm |
| Dynamic load C | 37.7 kN |
| Static load Co | 71 kN |
| Fatigue load limit Pu | 2.65 kN |
| Minimum load factor A | 0.026 |
| Reference speed | 3800 rpm |
| Limiting speed | 5300 rpm |
| Weight | 0.58 kg |
| Seating washer | U306 |
| D1 | 32mm |
| D2 | 45mm |
| D3 | 62mm |
| H | 41.3mm |
| B | 9mm |
| C | 7mm |
| R | 50mm |
| s | 19.5mm |
| r1r2 | 1mm |
| r3r4 | 0.3mm |
| da | 30mm |
| Da max | 45mm |
| ra max | 1mm |
| rb max | 0.3mm |
