SKF 53410 Single Thrust Ball Bearing with Spherical Housing Seat U410 50x110x50mm
SKF 53410 Single Thrust Ball Bearing with Spherical Housing Seat U410 50x110x50mm
Regular price
£403.51
ex VAT£484.21inc. VAT
Regular price
Sale price
£403.51
ex VAT£484.21
inc. VAT
In stock
Price Break
10+
£359.12
19+
£338.95
29+
£334.91
39+
£330.88
49+
£326.84
74+
£322.81
99+
£302.63
199+
£298.60
249+
£294.56
499+
£290.53
999+
£282.46
Couldn't load pickup availability
Description
Description
|

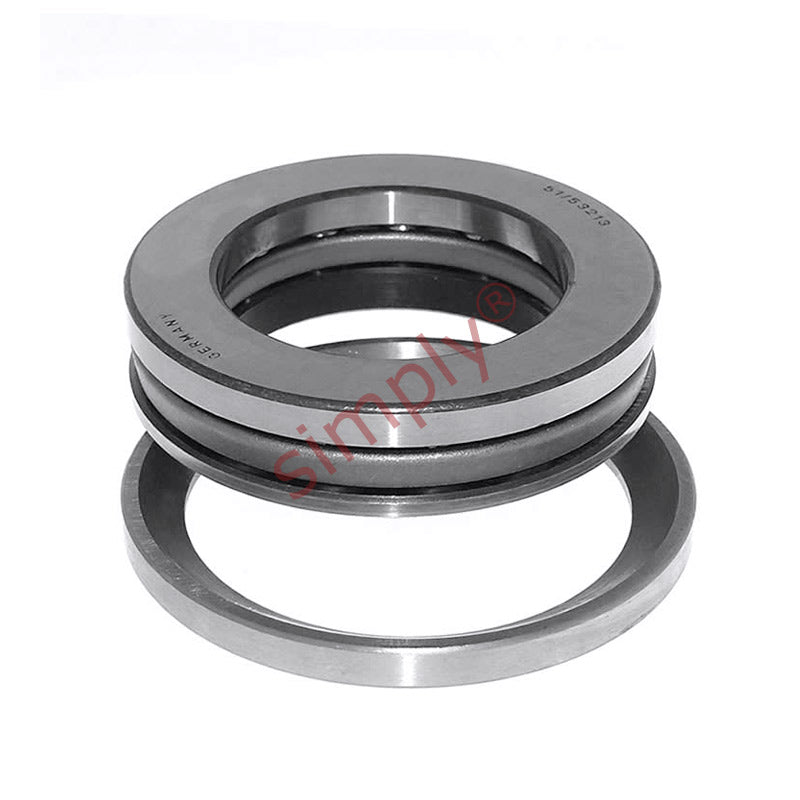

SKF Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. The lower washer has a spherical face to be used with a spherical housing washer. (shown but available separately). Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 110mm
- Width:
- 50mm
Technical
Technical
| d | 50mm |
|---|---|
| D | 110mm |
| H1 | 50mm |
| Dynamic load C | 159 kN |
| Static load Co | 340 kN |
| Fatigue load limit Pu | 12.5 kN |
| Minimum load factor A | 0.6 |
| Reference speed | 2000 rpm |
| Limiting speed | 2800 rpm |
| Weight | 2.31 kg |
| Seating washer | U410 |
| d1 | 110mm |
| D1 | 52mm |
| D2 | 80mm |
| D3 | 115mm |
| H | 45.6mm |
| C | 14mm |
| R | 90mm |
| s | 35mm |
| r1r2 min | 1.5mm |
| da max | 86mm |
| Da max | 80mm |
| ra max | 1.5mm |
