SKU: 53320?EU

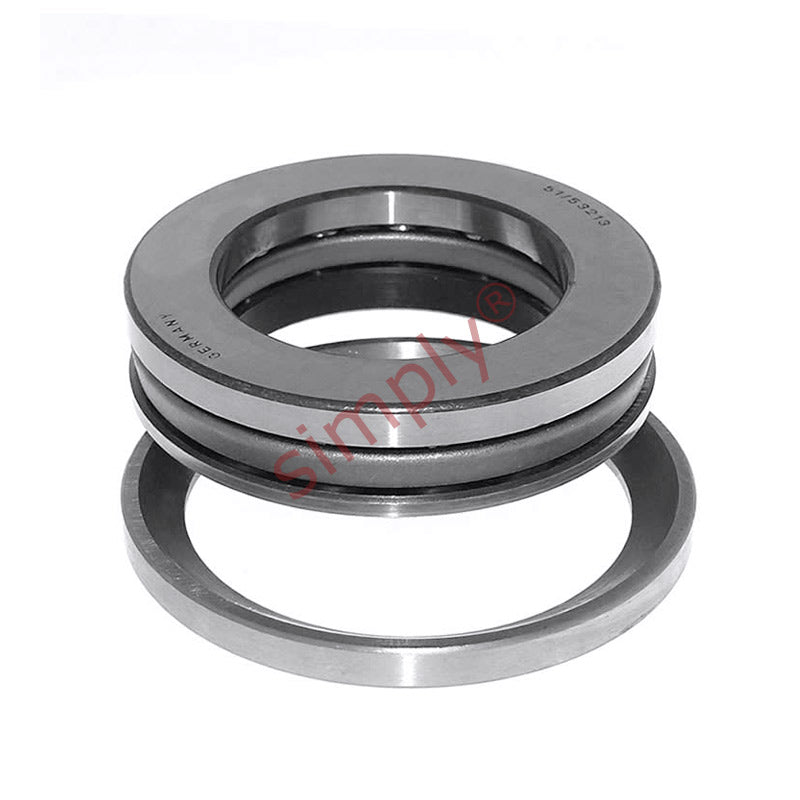

53320 Budget Single Thrust Ball Bearing with Spherical Housing Seat U320 100x170x64mm
53320 Budget Single Thrust Ball Bearing with Spherical Housing Seat U320 100x170x64mm
Regular price
£345.70
ex VAT£414.84inc. VAT
Regular price
Sale price
£345.70
ex VAT£414.84
inc. VAT
In stock
Price Break
10+
£307.67
19+
£290.39
29+
£286.93
39+
£283.47
49+
£280.02
74+
£276.56
99+
£259.27
199+
£255.82
249+
£252.36
499+
£248.90
999+
£241.99
Share this product
Description
Description
|
Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. The lower washer has a spherical face to be used with a spherical housing washer. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 170mm
- Width:
- 64mm
Technical
Technical
| d | 100mm |
|---|---|
| D | 170mm |
| H1 | 64mm |
| Dynamic load C | 229 kN |
| Static load Co | 610 kN |
| Fatigue load limit Pu | 19.6 kN |
| Minimum load factor A | 1.9 |
| Reference speed | 1400 rpm |
| Limiting Speed | 1900 rpm |
| Weight | 5.95 kg |
| Seating Washer | U320 |
| d1 | 170mm |
| D1 | 103mm |
| D2 | 135mm |
| D3 | 175mm |
| H | 59.2mm |
| C | 18mm |
| R | 125mm |
| s | 46mm |
| r1r2 min | 1.5mm |
| da max | 142mm |
| Da max | 135mm |
| ra max | 1.5mm |
