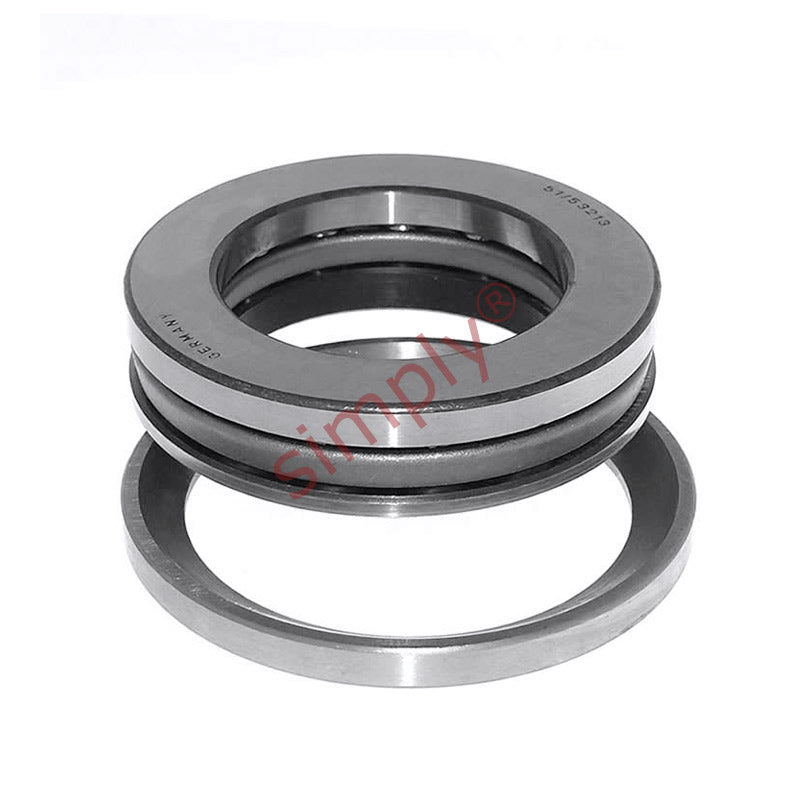

53316 Budget Single Thrust Ball Bearing with Spherical Housing Seat U316 80x140x52mm
53316 Budget Single Thrust Ball Bearing with Spherical Housing Seat U316 80x140x52mm
Regular price
£201.43
ex VAT£241.72inc. VAT
Regular price
Sale price
£201.43
ex VAT£241.72
inc. VAT
In stock
Price Break
10+
£179.28
19+
£169.21
29+
£167.19
39+
£165.18
49+
£163.16
74+
£161.15
99+
£151.08
199+
£149.06
249+
£147.05
499+
£145.03
999+
£141.00
Share this product
Description
Description
|
Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. The lower washer has a spherical face to be used with a spherical housing washer. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 140mm
- Width:
- 52mm
Technical
Technical
| d | 80mm |
|---|---|
| D | 140mm |
| H1 | 52mm |
| Dynamic load C | 159 kN |
| Static load Co | 390 kN |
| Fatigue load limit Pu | 13.7 kN |
| Minimum load factor A | 0.79 |
| Reference speed | 1700 rpm |
| Limiting Speed | 2400 rpm |
| Weight | 3.3 kg |
| Seating Washer | U316 |
| d1 | 140mm |
| D1 | 82mm |
| D2 | 110mm |
| D3 | 145mm |
| H | 47.6mm |
| C | 15mm |
| R | 112mm |
| s | 50mm |
| r1r2 min | 1.5mm |
| da max | 116mm |
| Da max | 110mm |
| ra max | 1.5mm |
