SKU: 53313?EU

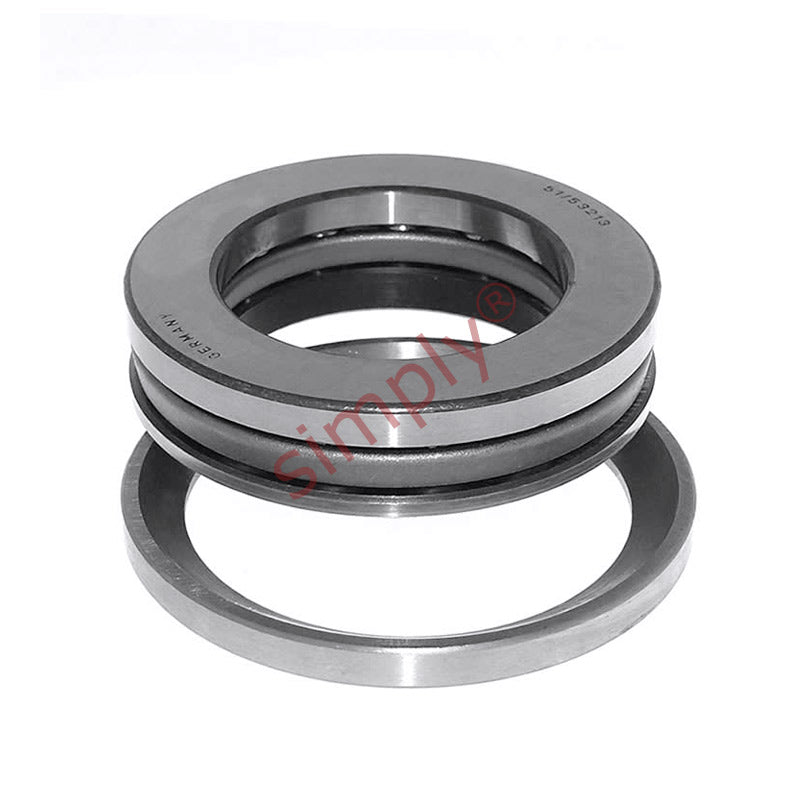

53313 Budget Single Thrust Ball Bearing with Spherical Housing Seat U313 65x115x43mm
53313 Budget Single Thrust Ball Bearing with Spherical Housing Seat U313 65x115x43mm
Regular price
£168.01
ex VAT£201.61inc. VAT
Regular price
Sale price
£168.01
ex VAT£201.61
inc. VAT
In stock
Price Break
10+
£149.53
19+
£141.13
29+
£139.45
39+
£137.77
49+
£136.09
74+
£134.41
99+
£126.01
199+
£124.33
249+
£122.65
499+
£120.97
999+
£117.61
Share this product
Description
Description
|
Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. The lower washer has a spherical face to be used with a spherical housing washer. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 115mm
- Width:
- 43mm
Technical
Technical
| d | 65mm |
|---|---|
| D | 115mm |
| H1 | 43mm |
| Dynamic load C | 106 kN |
| Static load Co | 240 kN |
| Fatigue load limit Pu | 8.8 kN |
| Minimum load factor A | 0.3 |
| Reference speed | 2000 rpm |
| Limiting Speed | 3000 rpm |
| Weight | 1.89 kg |
| Seating Washer | U313 |
| d1 | 115mm |
| D1 | 67mm |
| D2 | 90mm |
| D3 | 120mm |
| H | 39.4mm |
| C | 12.5mm |
| R | 90mm |
| s | 38.5mm |
| r1r2 min | 1.1mm |
| da max | 95mm |
| Da max | 90mm |
| ra max | 1mm |
