SKU: 53214?SKF

SKF 53214 Single Thrust Ball Bearing with Spherical Housing Seat U214 70x105x32mm

Name: SKF 53214 Single Thrust Ball Bearing with Spherical Housing Seat U214 70x105x32mm
Brand: SKF
SKU: 53214?SKF
Price: 183.04 GBP
Availability: InStock

£183.04 ex VAT£219.65inc. VAT

£183.04 ex VAT£219.65 inc. VAT

Sale Sold out

In stock

Price Break

10+ £162.91

19+ £153.75

29+ £151.92

39+ £150.09

49+ £148.26

74+ £146.43

99+ £137.28

199+ £135.45

249+ £133.62

499+ £131.79

999+ £128.13

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

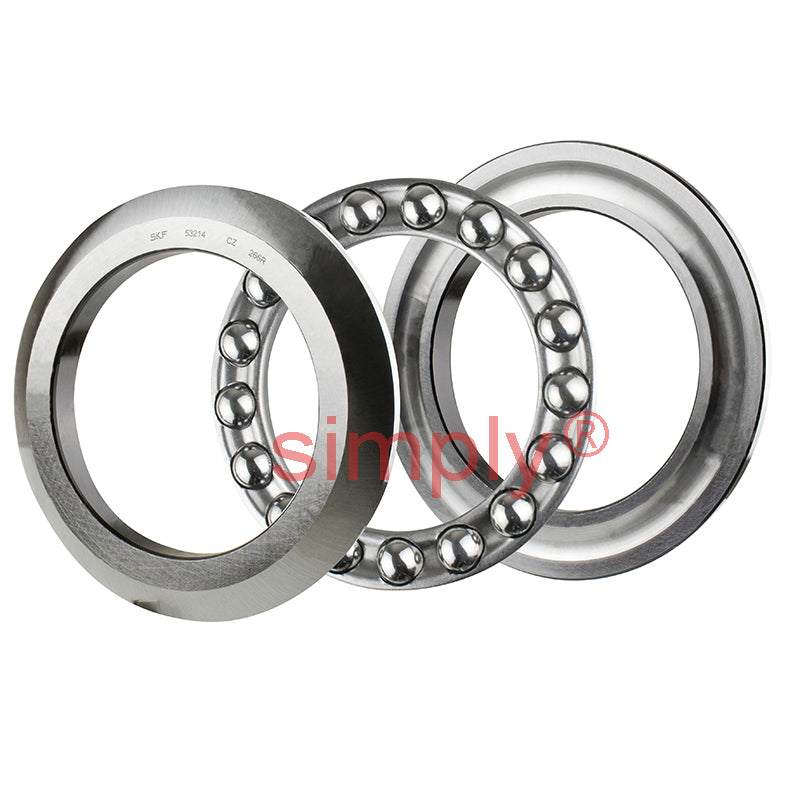

SKF Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. The lower washer has a spherical face to be used with a spherical housing washer. (shown but available separately). Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly

Brand / Quality:: SKF - High Quality
Inside Diameter:: 70mm
Outside Diameter:: 105mm
Width:: 32mm

Technical

d	70mm
D	105mm
H1	32mm
Dynamic load C	65 kN
Static load Co	173 kN
Fatigue load limit Pu	6.4 kN
Minimum load factor A	0.16
Reference speed	2600 rpm
Limiting speed	3600 rpm
Weight	0.97 kg
Seating washer	U214
d1	105mm
D1	72mm
D2	88mm
D3	110mm
H	28.8mm
C	9mm
R	80mm
s	38mm
r1r2 min	1mm
da max	91mm
Da max	88mm
ra max	1mm
