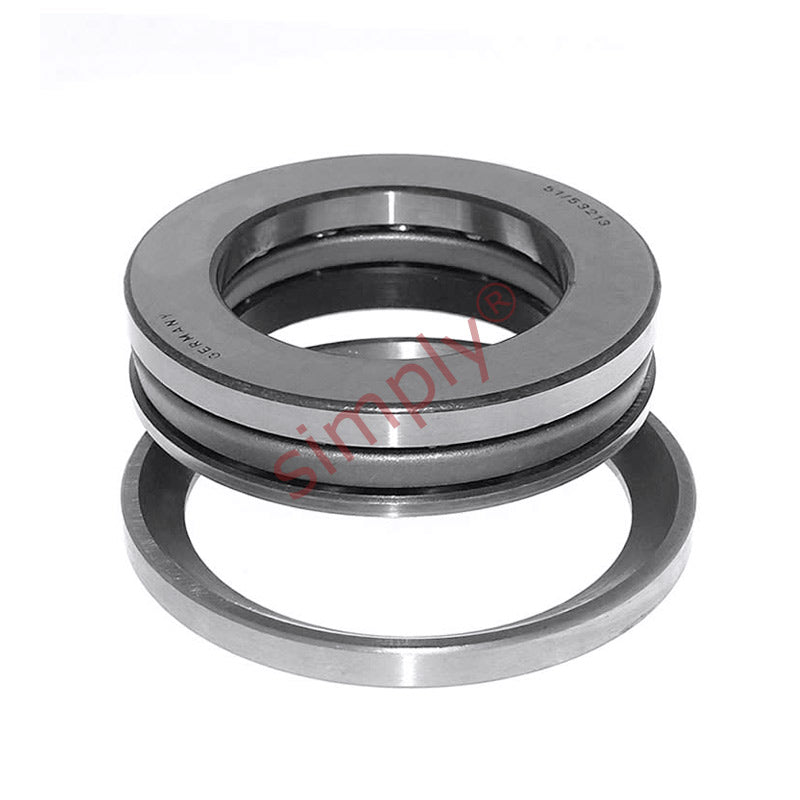

53203 Budget Single Thrust Ball Bearing with Spherical Housing Seat U203 17x35x15mm
53203 Budget Single Thrust Ball Bearing with Spherical Housing Seat U203 17x35x15mm
Regular price
£17.55
ex VAT£21.06inc. VAT
Regular price
Sale price
£17.55
ex VAT£21.06
inc. VAT
In stock
Price Break
10+
£15.62
19+
£14.74
29+
£14.57
39+
£14.39
49+
£14.22
74+
£14.04
99+
£13.16
199+
£12.99
249+
£12.81
499+
£12.64
999+
£12.29
Couldn't load pickup availability
Description
Description
|
Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. The lower washer has a spherical face to be used with a spherical housing washer. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 35mm
- Width:
- 15mm
Technical
Technical
| d | 17mm |
|---|---|
| D | 35mm |
| H1 | 15mm |
| Dynamic load C | 17.2 kN |
| Static load Co | 30 kN |
| Fatigue load limit Pu | 1.1 kN |
| Minimum load factor A | 0.0047 |
| Reference speed | 6700 rpm |
| Limiting Speed | 9500 rpm |
| Weight | 0.071 kg |
| Seating Washer | U203 |
| d1 | 35mm |
| D1 | 19mm |
| D2 | 26mm |
| D3 | 38mm |
| H | 13.2mm |
| C | 4mm |
| R | 32mm |
| s | 16mm |
| r1r2 min | 0.6mm |
| da max | 28mm |
| Da max | 26mm |
| ra max | 0.6mm |
