SKU: 53201?EU

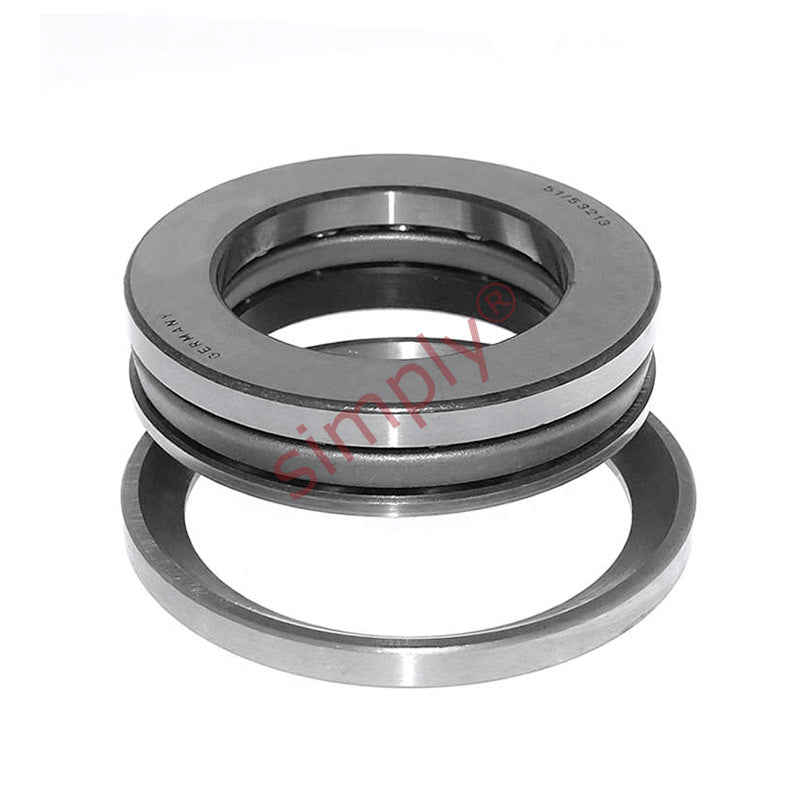

53201 Budget Single Thrust Ball Bearing with Spherical Housing Seat U201 12x28x13mm
53201 Budget Single Thrust Ball Bearing with Spherical Housing Seat U201 12x28x13mm
Regular price
£16.46
ex VAT£19.75inc. VAT
Regular price
Sale price
£16.46
ex VAT£19.75
inc. VAT
In stock
Price Break
10+
£14.65
19+
£13.82
29+
£13.66
39+
£13.49
49+
£13.33
74+
£13.16
99+
£12.34
199+
£12.18
249+
£12.01
499+
£11.85
999+
£11.52
Share this product
Description
Description
|
Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. The lower washer has a spherical face to be used with a spherical housing washer. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 28mm
- Width:
- 13mm
Technical
Technical
| d | 12mm |
|---|---|
| D | 28mm |
| H1 | 13mm |
| Dynamic load C | 13.3 kN |
| Static load Co | 20.8 kN |
| Fatigue load limit Pu | 0.77 kN |
| Minimum load factor A | 0.0022 |
| Reference speed | 8000 rpm |
| Limiting Speed | 11000 rpm |
| Weight | 0.045 kg |
| Seating Washer | U201 |
| d1 | 28mm |
| D1 | 14mm |
| D2 | 20mm |
| D3 | 30mm |
| H | 11.4mm |
| C | 3.5mm |
| R | 25mm |
| s | 11.5mm |
| r1r2 min | 0.6mm |
| da max | 22mm |
| Da max | 20mm |
| ra max | 0.6mm |
