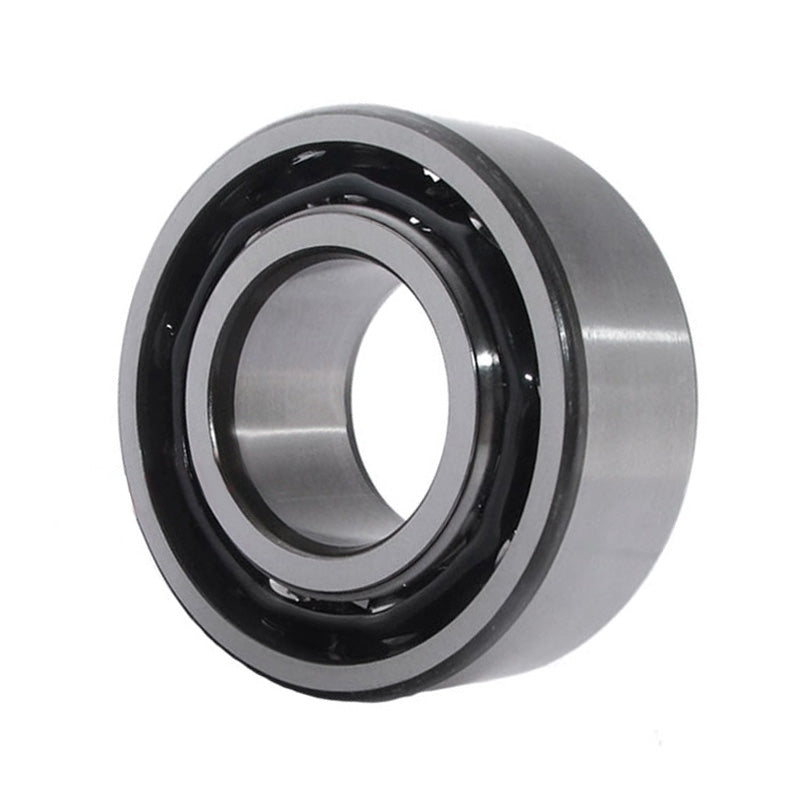

KSM 5305 Open Double Row Angular Contact Ball Bearing 25x62x25.4mm
KSM 5305 Open Double Row Angular Contact Ball Bearing 25x62x25.4mm
Regular price
£27.85
ex VAT£33.42inc. VAT
Regular price
Sale price
£27.85
ex VAT£33.42
inc. VAT
Equivalent to: 3305
In stock
Price Break
4+
£24.78
9+
£23.39
19+
£23.11
29+
£22.83
49+
£22.56
99+
£22.28
179+
£20.88
249+
£20.61
499+
£20.33
699+
£20.05
999+
£19.49
Share this product
Description
Description
Open Type Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 3305
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 3305
- Brand / Quality:
- KSM - Good Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 62mm
- Width:
- 25.4mm
- Seals / Shields:
- None
Technical
Technical
| --- | Bearing Dimensions |
|---|---|
| d | 25mm |
| D | 62mm |
| B | 25.4mm |
| --- | Abutment Dimensions |
| a | 36.5mm |
| r1r2 min | 1.1mm |
| r1r2 max | 1mm |
| Da min | 32mm |
| da max | 55mm |
| --- | Speeds, Weights and Loads |
| Basic Load Raiting Dynamic Cr | 30500 N |
| Basic Static Load Raiting Cor | 20500 N |
| Limiting Speed in Grease | 6700 rpm |
| Limiting Speed in Oil | 8900 rpm |
| Weight | 0.362 kg |
