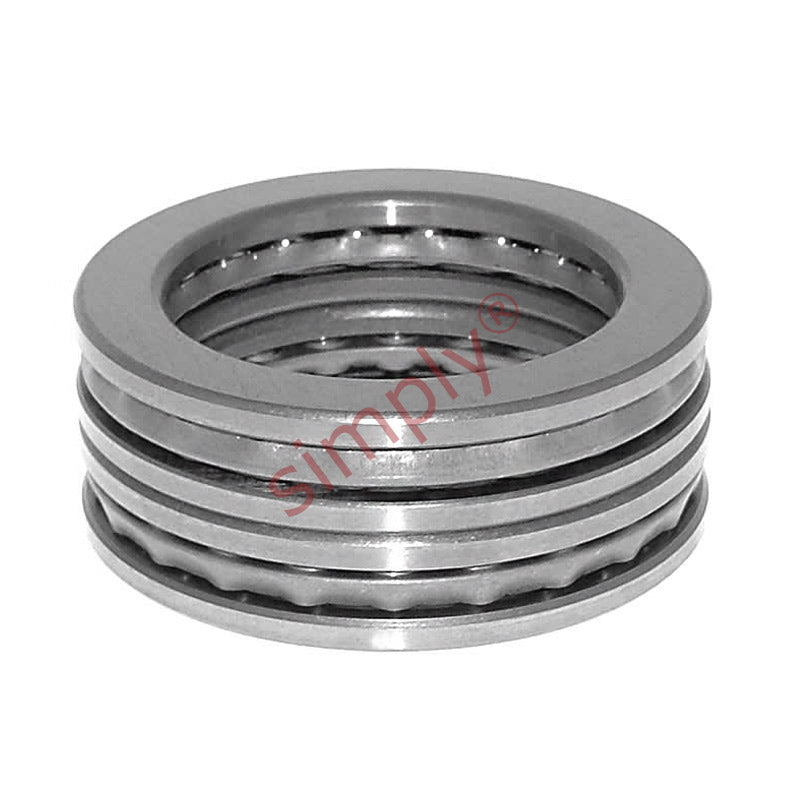

• SKF 52310 Double Thrust Ball Bearing with Flat Seats 40x95x58mm
1 1

SKU: 52310-SKF

SKF 52310 Double Thrust Ball Bearing with Flat Seats 40x95x58mm

SKF 52310 Double Thrust Ball Bearing with Flat Seats 40x95x58mm
£185.58 ex VAT£222.70inc. VAT
£185.58 ex VAT£222.70 inc. VAT
Sale Sold out

In stock

Price Break
10+ £165.17
19+ £155.89
29+ £154.03
39+ £152.18
49+ £150.32
74+ £148.47
99+ £139.19
199+ £137.33
249+ £135.48
499+ £133.62
999+ £129.91
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Double Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of five parts, a top, bottom and middle plate with annular grooves in them and two caged ball bearing assemblies that are sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in two directions. Clearance is provided in the bore of Centre of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Brand / Quality:
SKF - High Quality
Inside Diameter:
40mm
Outside Diameter:
95mm
Width:
58mm
Technical
d 40mm
D 95mm
H 58mm
Dynamic load C 88.4 kN
Static load Co 190 kN
Fatigue load limit Pu 6.95 kN
Minimum load factor A 0.19
Reference speed 2600 rpm
Limiting speed 3600 rpm
Weight 1.75 kg
D1 52mm
B 14mm
r1r2 1.1mm
r3r4 0.6mm
da 50mm
Da max 68mm
ra max 1mm
rb max 0.6mm
