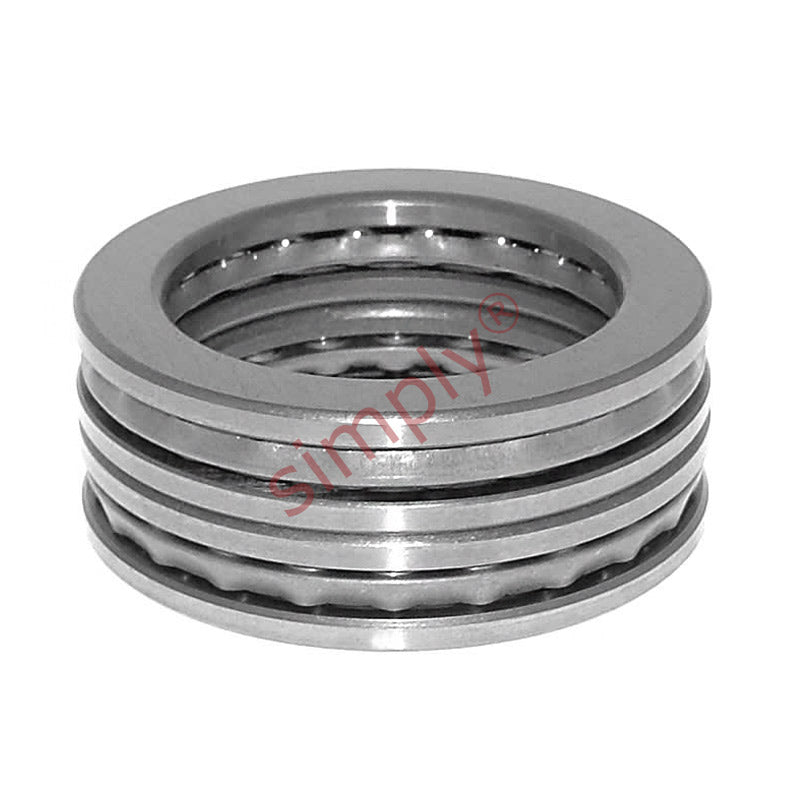

SKF 52224 Double Thrust Ball Bearing with Flat Seats 100x170x68mm
SKF 52224 Double Thrust Ball Bearing with Flat Seats 100x170x68mm
Regular price
£597.06
ex VAT£716.47inc. VAT
Regular price
Sale price
£597.06
ex VAT£716.47
inc. VAT
In stock
Price Break
10+
£531.38
19+
£501.53
29+
£495.56
39+
£489.59
49+
£483.62
74+
£477.65
99+
£447.79
199+
£441.82
249+
£435.85
499+
£429.88
999+
£417.94
Share this product
Description
Description
|
SKF Double Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of five parts, a top, bottom and middle plate with annular grooves in them and two caged ball bearing assemblies that are sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in two directions. Clearance is provided in the bore of Centre of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 170mm
- Width:
- 68mm
Technical
Technical
| d | 100mm |
|---|---|
| D | 170mm |
| H | 68mm |
| Dynamic load C | 140 kN |
| Static load Co | 440 kN |
| Fatigue load limit Pu | 13.4 kN |
| Minimum load factor A | 1 |
| Reference speed | 1600 rpm |
| Limiting speed | 2200 rpm |
| Weight | 5.25 kg |
| D1 | 123mm |
| B | 15mm |
| r1r2 | 1.1mm |
| r3r4 | 1.1mm |
| da | 120mm |
| Da max | 140mm |
| ra max | 1mm |
| rb max | 1mm |
