SKU: 5210-EE-G15

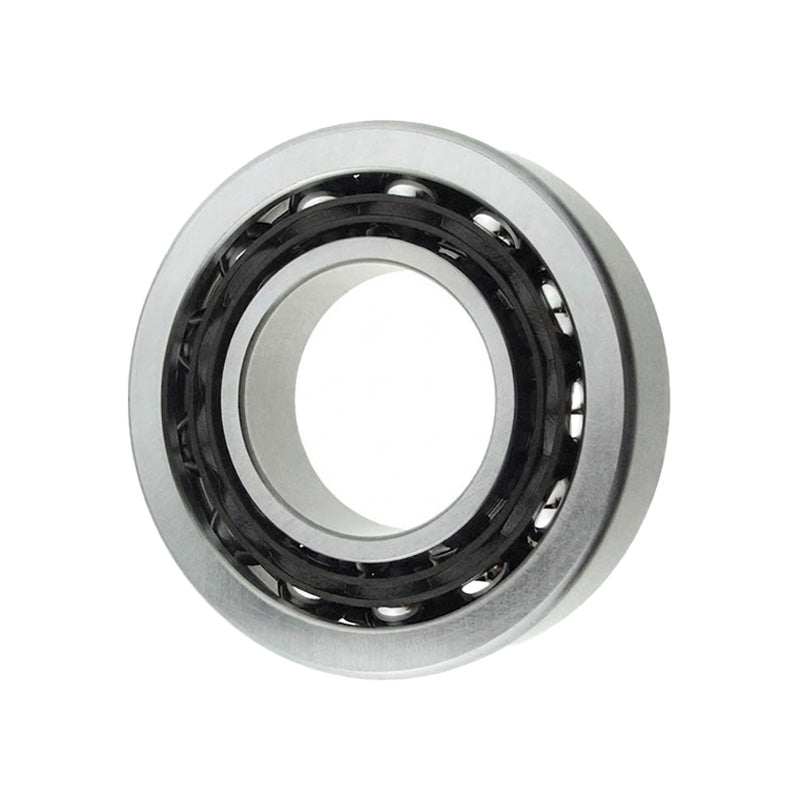

SNR 5210EEG15 Rubber Sealed Double Row Angular Contact Ball Bearing 50x90x30

Name: SNR 5210EEG15 Rubber Sealed Double Row Angular Contact Ball Bearing 50x90x30
Brand: SNR
SKU: 5210-EE-G15
Price: 31.72 GBP
Availability: InStock

£31.72 ex VAT£38.06inc. VAT

£31.72 ex VAT£38.06 inc. VAT

Sale Sold out

Equivalent to: 32102RS 52102RS

In stock

Price Break

10+ £28.23

19+ £26.65

29+ £26.33

39+ £26.01

49+ £25.70

74+ £25.38

99+ £23.79

199+ £23.48

249+ £23.16

499+ £22.84

999+ £22.21

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Rubber Sealed Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well
Benefits: Compact, rigid, accommodates tilting, radial and axial loads

Click and Drag to Zoom More

	Transmission and gearboxes
	Cranes, elevator and lifting equipment
	Agricultural, pumps, mining
	Rail and transport use
	General engineering applications
	Marine and Shipping
	Great value quality parts dispatched the same day

Supplied in the world's leading bearing brands

Equivalent: 32102RS 52102RS

Brand / Quality:: SNR - High Quality
Inside Diameter:: 50mm
Outside Diameter:: 90mm
Width:: 30.2mm
Seals / Shields:: Rubber Sealed

Technical

d	50mm
D	90mm
B	30.2mm
Dynamic Load	48.5 kN
Static Load	42.2 kN
Fatigue Load Limit Cu	2.55 kN
Weight	0.8kg
d1	62mm
D1	80.6mm
a	45.5mm
da min	56.5mm
da max	62mm
Da max	83.5mm
ra min	1mm
