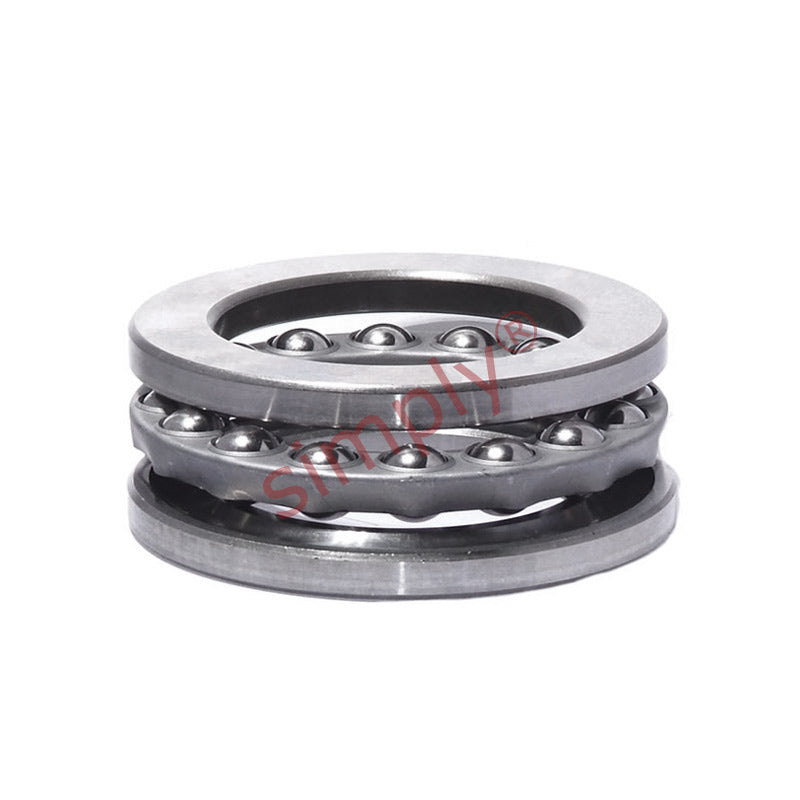

SKF 51412M Single Thrust Ball Bearing 60x130x51mm
SKF 51412M Single Thrust Ball Bearing 60x130x51mm
Regular price
£378.16
ex VAT£453.79inc. VAT
Regular price
Sale price
£378.16
ex VAT£453.79
inc. VAT
In stock
Price Break
10+
£336.56
19+
£317.65
29+
£313.87
39+
£310.09
49+
£306.31
74+
£302.53
99+
£283.62
199+
£279.84
249+
£276.06
499+
£272.28
999+
£264.71
Couldn't load pickup availability
Description
Description
|
SKF Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 130mm
- Width:
- 51mm
Technical
Technical
| d | 60mm |
|---|---|
| D | 130mm |
| H | 51mm |
| Dynamic load C | 199 kN |
| Static load Co | 430 kN |
| Fatigue load limit Pu | 16 kN |
| Minimum load factor A | 0.96 |
| Reference speed | 1600 rpm |
| Limiting speed | 2200 rpm |
| Weight | 3.1 kg |
| d1 | 130mm |
| D1 | 62mm |
| r1r2 min | 1.5mm |
| da min | 102mm |
| Da max | 88mm |
| ra max | 1.5mm |
