SKU: 51310-SKF

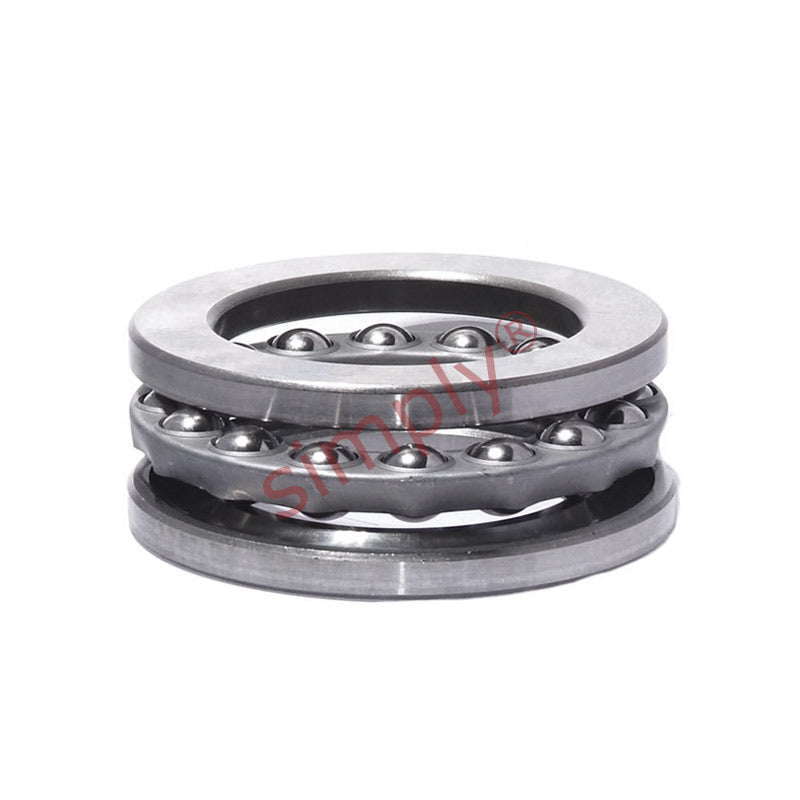

SKF 51310 Single Thrust Ball Bearing 50x95x31mm
SKF 51310 Single Thrust Ball Bearing 50x95x31mm
Regular price
£77.99
ex VAT£93.59inc. VAT
Regular price
Sale price
£77.99
ex VAT£93.59
inc. VAT
In stock
Price Break
10+
£69.41
19+
£65.51
29+
£64.73
39+
£63.95
49+
£63.17
74+
£62.39
99+
£58.49
199+
£57.71
249+
£56.93
499+
£56.15
999+
£54.59
Couldn't load pickup availability
Description
Description
|
SKF Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 95mm
- Width:
- 31mm
Technical
Technical
| d | 50mm |
|---|---|
| D | 95mm |
| H | 31mm |
| Dynamic load C | 88.4 kN |
| Static load Co | 190 kN |
| Fatigue load limit Pu | 6.95 kN |
| Minimum load factor A | 0.19 |
| Reference speed | 2600 rpm |
| Limiting speed | 3600 rpm |
| Weight | 0.94 kg |
| d1 | 95mm |
| D1 | 52mm |
| r1r2 min | 1.1mm |
| da min | 77mm |
| Da max | 68mm |
| ra max | 1mm |
