SKU: 51217-CDX

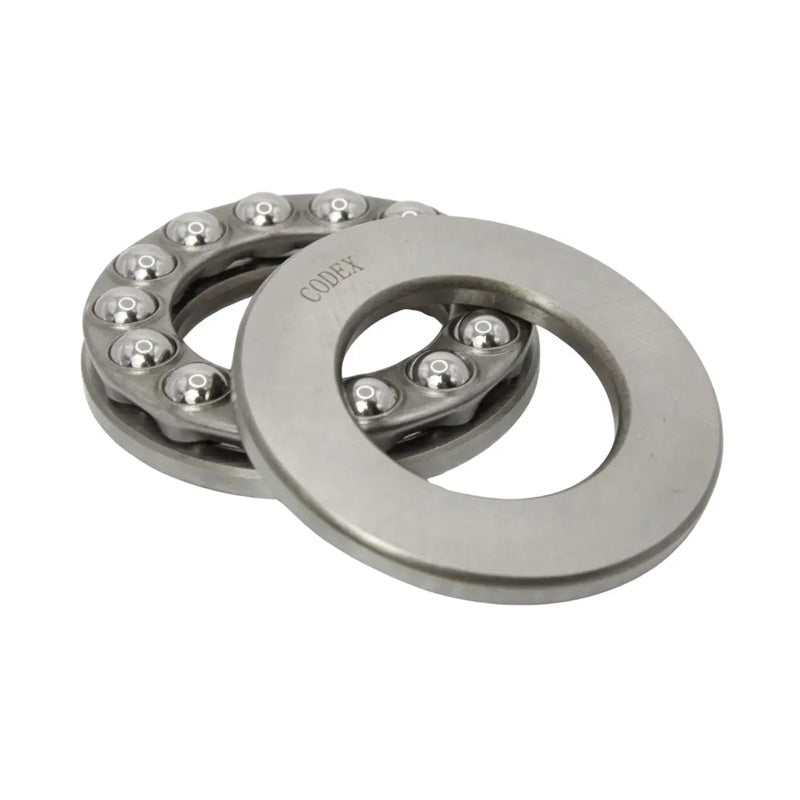

Codex 51217 Single Thrust Ball Bearing 85x125x31mm
Codex 51217 Single Thrust Ball Bearing 85x125x31mm
Regular price
£11.11
ex VAT£13.33inc. VAT
Regular price
£79.33
Sale price
£11.11
ex VAT£95.20£13.33
inc. VAT
In stock
Price Break
10+
£9.89
19+
£9.33
29+
£9.22
39+
£9.11
49+
£9.00
74+
£8.89
99+
£8.33
199+
£8.22
249+
£8.11
499+
£8.00
999+
£7.78
Couldn't load pickup availability
Share this product
Description
Description
Codex Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 125mm
- Width:
- 31mm
Technical
Technical
| d | 85 |
|---|---|
| D | 125 |
| H | 31 |
| Dynamic Load | 97.5 kN |
| Static Load | 275 kN |
| Pu | 9.8 |
| A | 0.39 |
| Ref Speed | 2200 rpm |
| Limiting Speed | 3000 rpm |
| kg | 1.2 |
| d1 | 125 |
| D1 | 88 |
| r1r2 min | 1 |
| da min | 109 |
| Da max | 101 |
| ra max | 1 |
