SKU: 51207-CDX

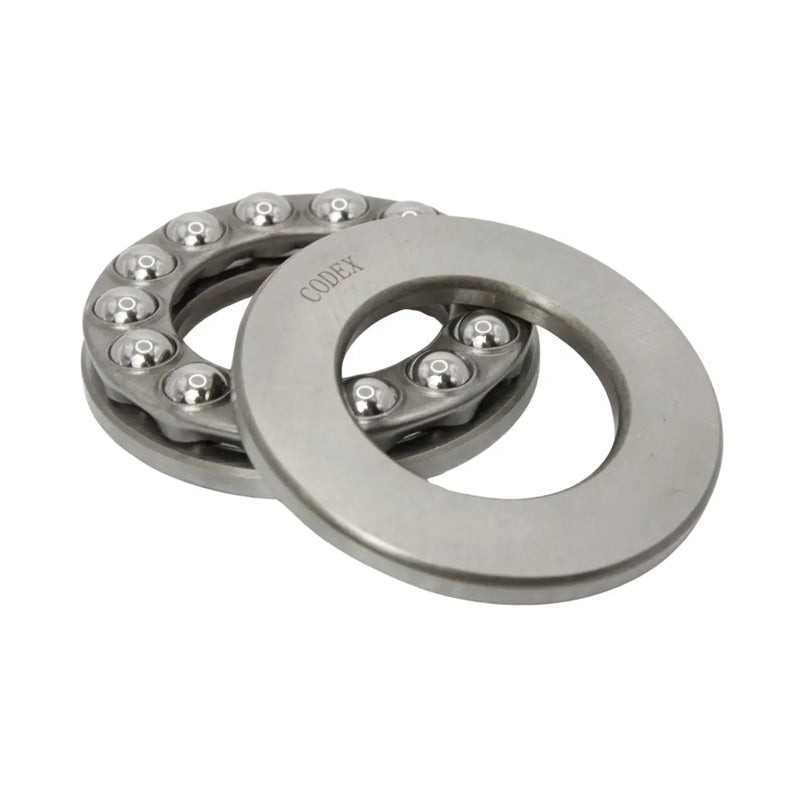

Codex 51207 Single Thrust Ball Bearing 35x62x18mm
Codex 51207 Single Thrust Ball Bearing 35x62x18mm
Regular price
£1.51
ex VAT£1.81inc. VAT
Regular price
£21.51
Sale price
£1.51
ex VAT£25.81£1.81
inc. VAT
In stock
Price Break
10+
£1.34
19+
£1.27
29+
£1.25
39+
£1.24
49+
£1.22
74+
£1.21
99+
£1.13
199+
£1.12
249+
£1.10
499+
£1.09
999+
£1.06
Couldn't load pickup availability
Share this product
Description
Description
Codex Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 62mm
- Width:
- 18mm
Technical
Technical
| d | 35 |
|---|---|
| D | 62 |
| H | 18 |
| Dynamic Load | 35.1 kN |
| Static Load | 73.5 kN |
| Pu | 2.7 |
| A | 0.028 |
| Ref Speed | 4000 rpm |
| Limiting Speed | 5600 rpm |
| kg | 0.22 |
| d1 | 62 |
| D1 | 37 |
| r1r2 min | 1 |
| da min | 51 |
| Da max | 46 |
| ra max | 1 |
