SKU: 51117-SKF

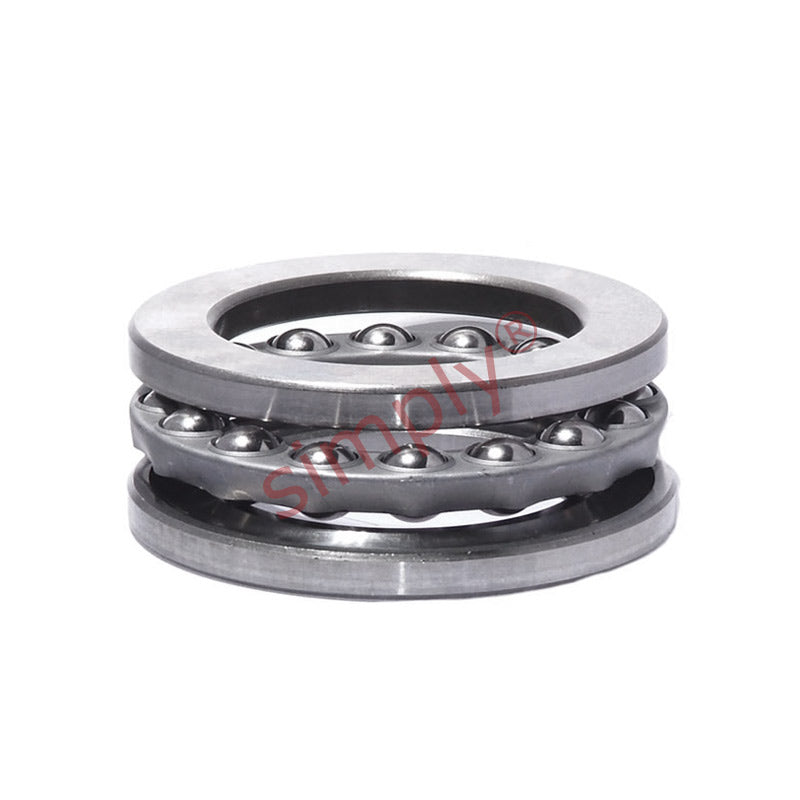

SKF 51117 Single Thrust Ball Bearing 85x110x19mm
SKF 51117 Single Thrust Ball Bearing 85x110x19mm
Regular price
£54.79
ex VAT£65.75inc. VAT
Regular price
Sale price
£54.79
ex VAT£65.75
inc. VAT
In stock
Price Break
10+
£48.76
19+
£46.02
29+
£45.48
39+
£44.93
49+
£44.38
74+
£43.83
99+
£41.09
199+
£40.54
249+
£40.00
499+
£39.45
999+
£38.35
Couldn't load pickup availability
Description
Description
|
SKF Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 110mm
- Width:
- 19mm
Technical
Technical
| d | 85mm |
|---|---|
| D | 110mm |
| H | 19mm |
| Dynamic load C | 46.2 kN |
| Static load Co | 163 kN |
| Fatigue load limit Pu | 6 kN |
| Minimum load factor A | 0.14 |
| Reference speed | 3000 rpm |
| Limiting speed | 4300 rpm |
| Weight | 0.44 kg |
| d1 | 110mm |
| D1 | 87mm |
| r1r2 min | 1mm |
| da min | 100mm |
| Da max | 95mm |
| ra max | 1mm |
