SKU: 51114-SKF

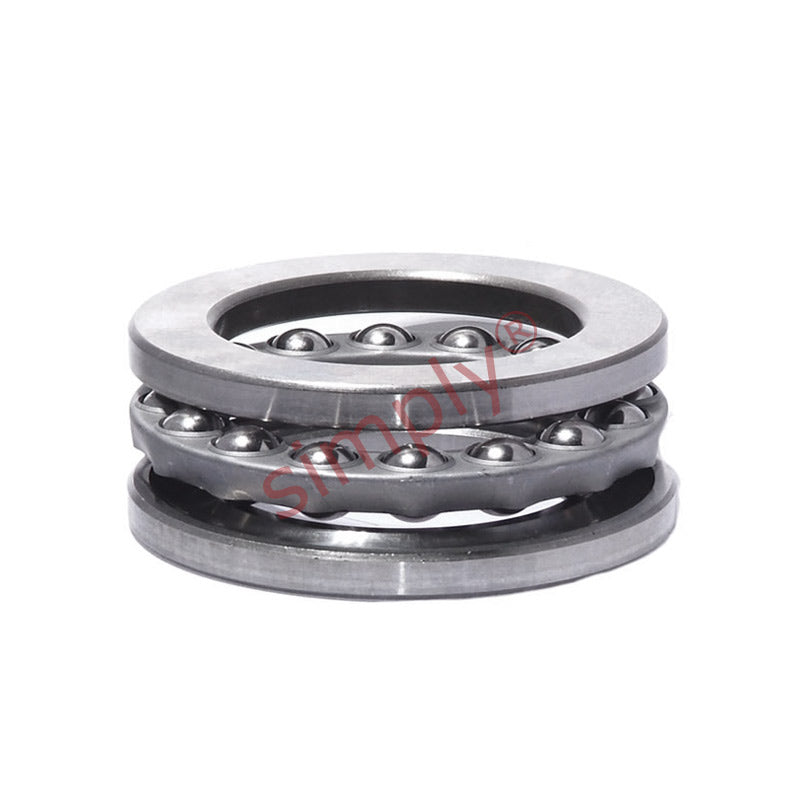

SKF 51114 Single Thrust Ball Bearing 70x95x18mm
SKF 51114 Single Thrust Ball Bearing 70x95x18mm
Regular price
£34.55
ex VAT£41.46inc. VAT
Regular price
Sale price
£34.55
ex VAT£41.46
inc. VAT
In stock
Price Break
10+
£30.75
19+
£29.02
29+
£28.68
39+
£28.33
49+
£27.99
74+
£27.64
99+
£25.91
199+
£25.57
249+
£25.22
499+
£24.88
999+
£24.19
Couldn't load pickup availability
Description
Description
|
SKF Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 95mm
- Width:
- 18mm
Technical
Technical
| d | 70mm |
|---|---|
| D | 95mm |
| H | 18mm |
| Dynamic load C | 40.3 kN |
| Static load Co | 120 kN |
| Fatigue load limit Pu | 4.4 kN |
| Minimum load factor A | 0.074 |
| Reference speed | 3400 rpm |
| Limiting speed | 4500 rpm |
| Weight | 0.35 kg |
| d1 | 95mm |
| D1 | 72mm |
| r1r2 min | 1mm |
| da min | 85mm |
| Da max | 80mm |
| ra max | 1mm |
