SKU: 51113.MB

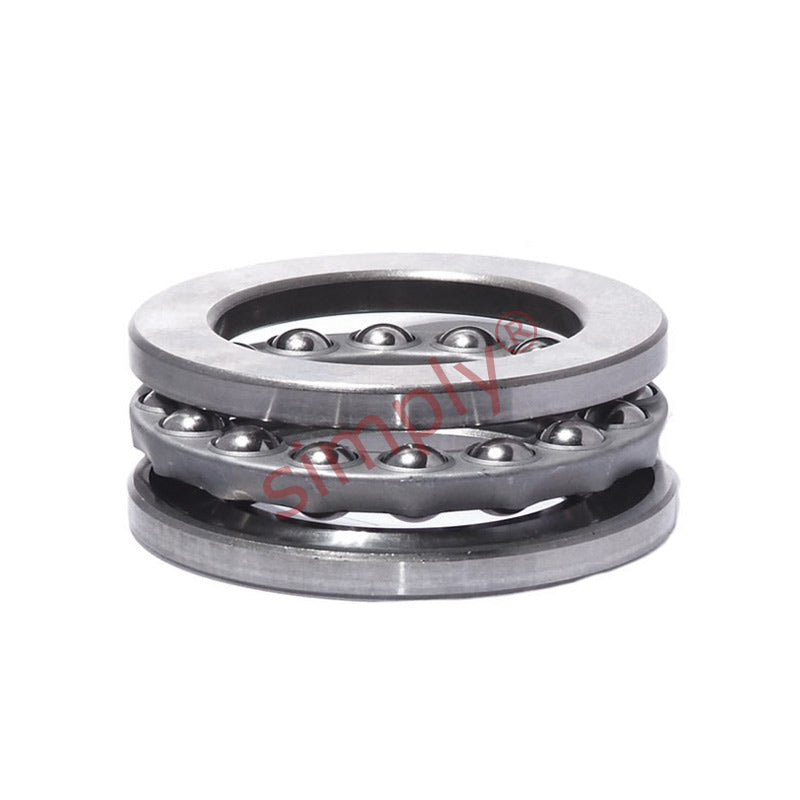

51113 Thrust Ball Bearing 65x90x18mm
51113 Thrust Ball Bearing 65x90x18mm
Regular price
£25.39
ex VAT£30.47inc. VAT
Regular price
Sale price
£25.39
ex VAT£30.47
inc. VAT
In stock
Price Break
10+
£22.60
19+
£21.33
29+
£21.07
39+
£20.82
49+
£20.57
74+
£20.31
99+
£19.04
199+
£18.79
249+
£18.53
499+
£18.28
999+
£17.77
Couldn't load pickup availability
Description
Description
|
Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 90mm
- Width:
- 18mm
Technical
Technical
| d | 65mm |
|---|---|
| D | 90mm |
| H | 18mm |
| Dynamic load C | 37.7 kN |
| Static load Co | 108 kN |
| Fatigue load limit Pu | 4 kN |
| Minimum load factor A | 0.06 |
| Reference speed | 3400 rpm |
| Limiting speed | 4800 rpm |
| Weight | 0.33 kg |
| d1 | 90mm |
| D1 | 67mm |
| r1r2 min | 1mm |
| da min | 80mm |
| Da max | 75mm |
| ra max | 1mm |
