SKU: 51110-SKF

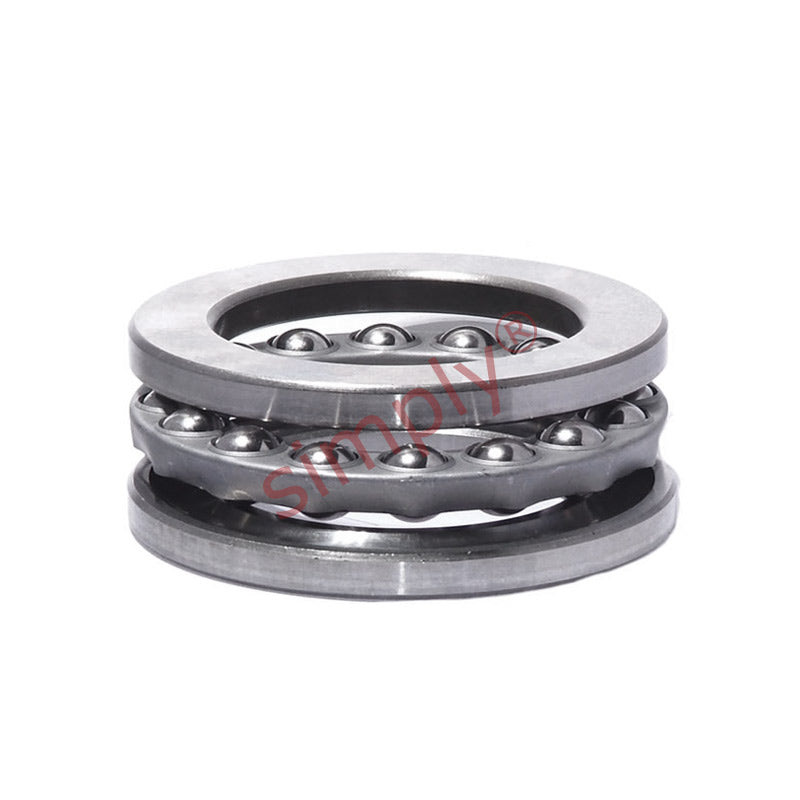

SKF 51110 Single Thrust Ball Bearing 50x70x14mm
SKF 51110 Single Thrust Ball Bearing 50x70x14mm
Regular price
£25.57
ex VAT£30.68inc. VAT
Regular price
Sale price
£25.57
ex VAT£30.68
inc. VAT
In stock
Price Break
10+
£22.76
19+
£21.48
29+
£21.23
39+
£20.97
49+
£20.71
74+
£20.46
99+
£19.18
199+
£18.92
249+
£18.67
499+
£18.41
999+
£17.90
Share this product
Description
Description
|
SKF Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 70mm
- Width:
- 14mm
Technical
Technical
| d | 50mm |
|---|---|
| D | 70mm |
| H | 14mm |
| Dynamic load C | 27 kN |
| Static load Co | 75 kN |
| Fatigue load limit Pu | 2.8 kN |
| Minimum load factor A | 0.029 |
| Reference speed | 4300 rpm |
| Limiting speed | 6300 rpm |
| Weight | 0.16 kg |
| d1 | 70mm |
| D1 | 52mm |
| r1r2 min | 0.6mm |
| da min | 62mm |
| Da max | 58mm |
| ra max | 0.6mm |
