SKU: 51107-SKF

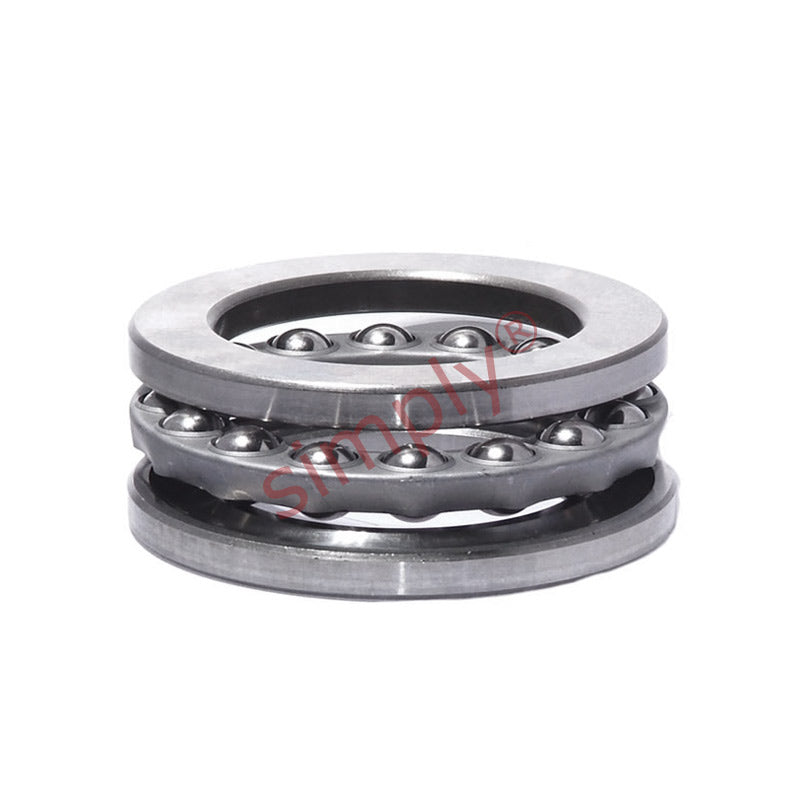

SKF 51107 Single Thrust Ball Bearing 35x52x12mm
SKF 51107 Single Thrust Ball Bearing 35x52x12mm
Regular price
£17.07
ex VAT£20.48inc. VAT
Regular price
Sale price
£17.07
ex VAT£20.48
inc. VAT
In stock
Price Break
10+
£15.19
19+
£14.34
29+
£14.17
39+
£14.00
49+
£13.83
74+
£13.66
99+
£12.80
199+
£12.63
249+
£12.46
499+
£12.29
999+
£11.95
Share this product
Description
Description
|
SKF Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 52mm
- Width:
- 12mm
Technical
Technical
| d | 35mm |
|---|---|
| D | 52mm |
| H | 12mm |
| Dynamic load C | 19.9 kN |
| Static load Co | 51 kN |
| Fatigue load limit Pu | 1.86 kN |
| Minimum load factor A | 0.013 |
| Reference speed | 5600 rpm |
| Limiting speed | 7500 rpm |
| Weight | 0.08 kg |
| d1 | 52mm |
| D1 | 37mm |
| r1r2 min | 0.6mm |
| da min | 45mm |
| Da max | 42mm |
| ra max | 0.6mm |
