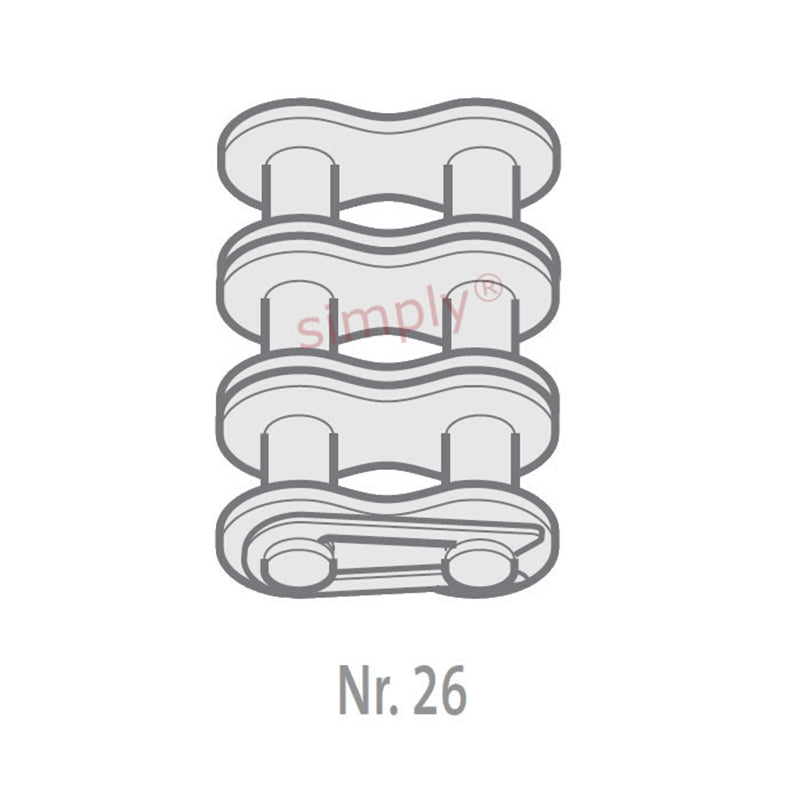

Branded 50-3-NO26 ANSI / AS Triplex Chain Connecting Link With Spring Clip 5/8 inch Pitch
Branded 50-3-NO26 ANSI / AS Triplex Chain Connecting Link With Spring Clip 5/8 inch Pitch
Regular price
£4.74
ex VAT£5.69inc. VAT
Regular price
Sale price
£4.74
ex VAT£5.69
inc. VAT
Equivalent to: 50-3-CL
In stock
Price Break
10+
£4.22
19+
£3.98
29+
£3.93
39+
£3.89
49+
£3.84
74+
£3.79
99+
£3.56
199+
£3.51
249+
£3.46
499+
£3.41
999+
£3.32
Couldn't load pickup availability
Description
Description
Branded CL / No. 26 ANSI Triplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins.
Equivalent: 50-3-CL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical
| Pitch (A) | 0.625 inch |
|---|---|
| Pitch (A) | 15.875mm |
| Inside Width min (B) | 9.4mm |
| Roller Diameter max (C) | 10.16mm |
| Plate Height max (D) | 15.09mm |
| Plate Width Inner max (E) | 2mm |
| Plate Width Outer max (F) | 2mm |
| Pin Diameter max (G) | 5.08mm |
| Pin Length max (H1) | 57.5mm |
| Connecting Link Extension max (J) | 3.9mm |
| ISO606 Tensile Strength min | 65400 N |
| Weight | 18.11kg/m |
