Renold Synergy 50-2-NO12 ANSI / AS Duplex Chain Single Cranked Cottered Link 5/8 inch Pitch
Renold Synergy 50-2-NO12 ANSI / AS Duplex Chain Single Cranked Cottered Link 5/8 inch Pitch
Regular price
£44.14
ex VAT£52.97inc. VAT
Regular price
Sale price
£44.14
ex VAT£52.97
inc. VAT
In stock
Price Break
10+
£39.28
19+
£37.08
29+
£36.64
39+
£36.19
49+
£35.75
74+
£35.31
99+
£33.11
199+
£32.66
249+
£32.22
499+
£31.78
999+
£30.90
Couldn't load pickup availability
Description
Description

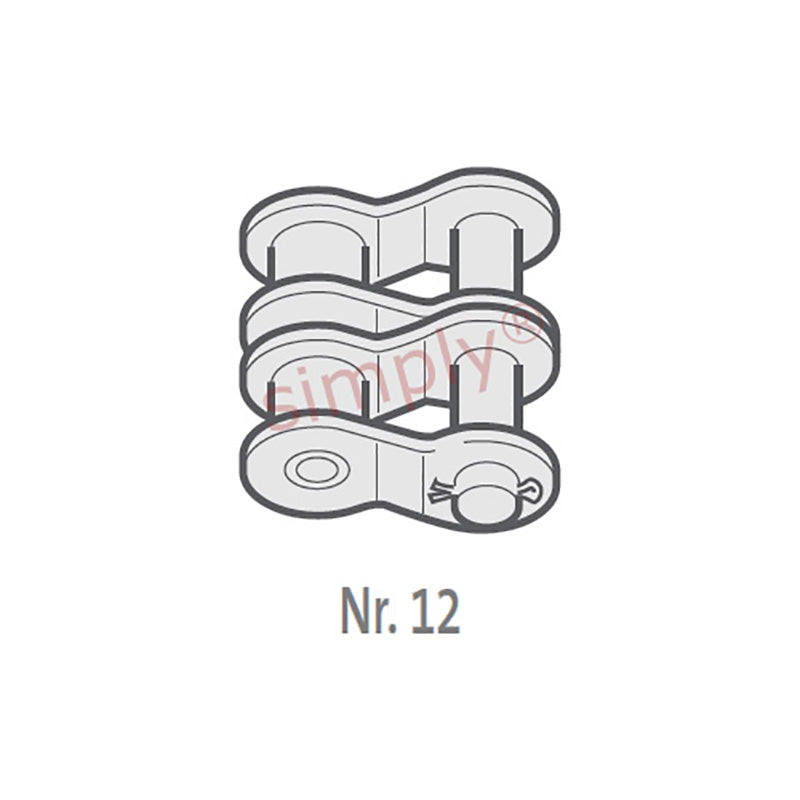

| Renold No. 12 ANSI Duplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical
| Pitch (A) | 0.625 inch |
|---|---|
| Pitch (A) | 15.875mm |
| Inside Width min (B) | 9.4mm |
| Roller Diameter max (C) | 10.16mm |
| Plate Height max (D) | 14.6mm |
| Plate Width Inner max (E) | 2.04mm |
| Plate Width Outer max (F) | 2.04mm |
| Pin Diameter max (G) | 5.08mm |
| Pin Length max (H2) | 38.4mm |
| Connecting Link Extension max (J) | 2.7mm |
| Transverse Pitch nom (K) | 18.11mm |
| ISO606 Tensile Strength min | 43600 N |
| Weight | 0.01kg/m |
