SKU: 50-2-SD-NO26-RENOLD
Renold SD 50-2-NO26 ANSI / AS Duplex Chain Connecting Link With Spring Clip 5/8 inch Pitch
Renold SD 50-2-NO26 ANSI / AS Duplex Chain Connecting Link With Spring Clip 5/8 inch Pitch
Regular price
£6.50
ex VAT£7.80inc. VAT
Regular price
Sale price
£6.50
ex VAT£7.80
inc. VAT
In stock
Price Break
10+
£5.79
19+
£5.46
29+
£5.40
39+
£5.33
49+
£5.27
74+
£5.20
99+
£4.88
199+
£4.81
249+
£4.75
499+
£4.68
999+
£4.55
Couldn't load pickup availability
Description
Description

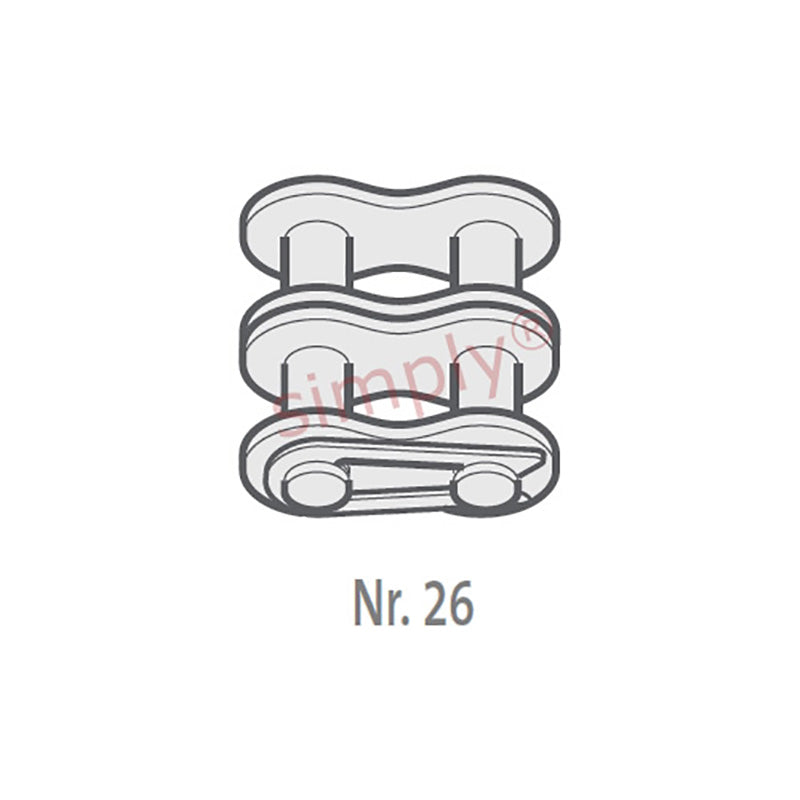

| Renold No. 26 ANSI Duplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical
| Pitch (A) | 0.625 inch |
|---|---|
| Pitch (A) | 15.875mm |
| Inside Width min (B) | 9.4mm |
| Roller Diameter max (C) | 10.16mm |
| Plate Height max (D) | 15.09mm |
| Plate Width Inner max (E) | 2mm |
| Plate Width Outer max (F) | 2mm |
| Pin Diameter max (G) | 5.08mm |
| Pin Length max (H2) | 39mm |
| Connecting Link Extension max (J) | 1.3mm |
| Transverse Pitch nom (K) | 18.11mm |
| ISO606 Tensile Strength min | 43600 N |
| Weight | 0.01kg/m |
