SKU: 50-1-NO30-MB
Branded 50-1-NO30 ANSI / AS Simplex Chain Double Cranked Link 5/8 inch Pitch
Branded 50-1-NO30 ANSI / AS Simplex Chain Double Cranked Link 5/8 inch Pitch
Regular price
£5.42
ex VAT£6.50inc. VAT
Regular price
Sale price
£5.42
ex VAT£6.50
inc. VAT
Equivalent to: 50-1-DOL
In stock
Price Break
10+
£4.82
19+
£4.55
29+
£4.50
39+
£4.44
49+
£4.39
74+
£4.34
99+
£4.07
199+
£4.01
249+
£3.96
499+
£3.90
999+
£3.79
Couldn't load pickup availability
Description
Description

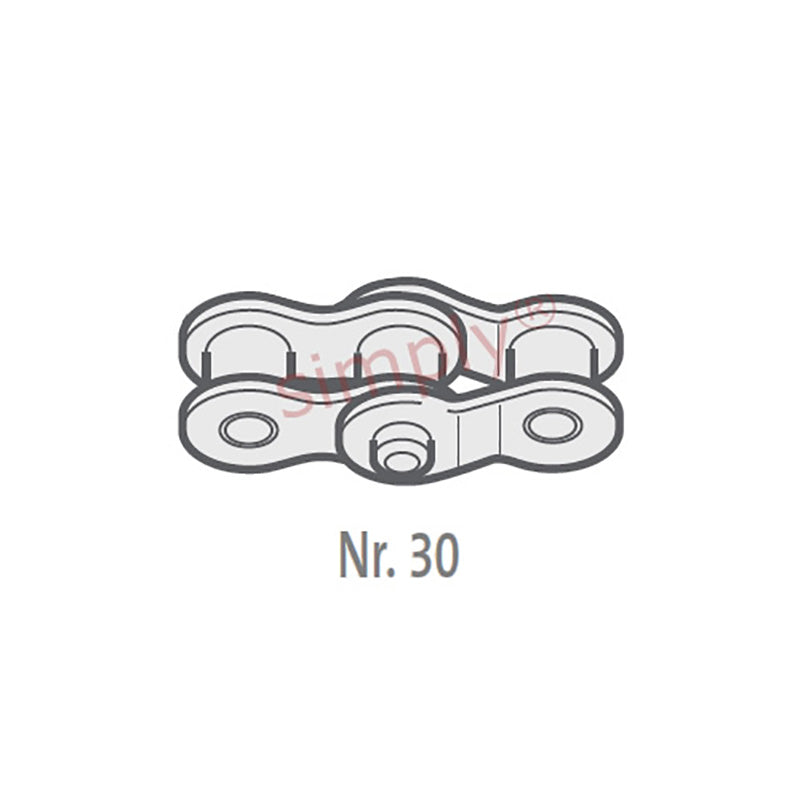

Branded DOL / No. 30 ANSI Simplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin.
Equivalent: 50-1-DOL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical
| Pitch (A) | 0.625 inch |
|---|---|
| Pitch (A) | 15.875mm |
| Inside Width min (B) | 9.4mm |
| Roller Diameter max (C) | 10.16mm |
| Plate Height max (D) | 15.09mm |
| Plate Width Inner max (E) | 2mm |
| Plate Width Outer max (F) | 2mm |
| Pin Diameter max (G) | 5.08mm |
| Pin Length max (H1) | 20.9mm |
| Connecting Link Extension max (J) | 1.3mm |
| ISO606 Tensile Strength min | 21800 N |
| Weight | 0.015kg/m |
