SKU: 50-1-BB-NO26-RENOLD
Renold Blue Box 50-1-NO26 ANSI / AS Simplex Chain Connecting Link With Spring Clip 5/8 inch Pitch
Renold Blue Box 50-1-NO26 ANSI / AS Simplex Chain Connecting Link With Spring Clip 5/8 inch Pitch
Regular price
£6.53
ex VAT£7.84inc. VAT
Regular price
Sale price
£6.53
ex VAT£7.84
inc. VAT
In stock
Price Break
10+
£5.81
19+
£5.49
29+
£5.42
39+
£5.35
49+
£5.29
74+
£5.22
99+
£4.90
199+
£4.83
249+
£4.77
499+
£4.70
999+
£4.57
Couldn't load pickup availability
Description
Description

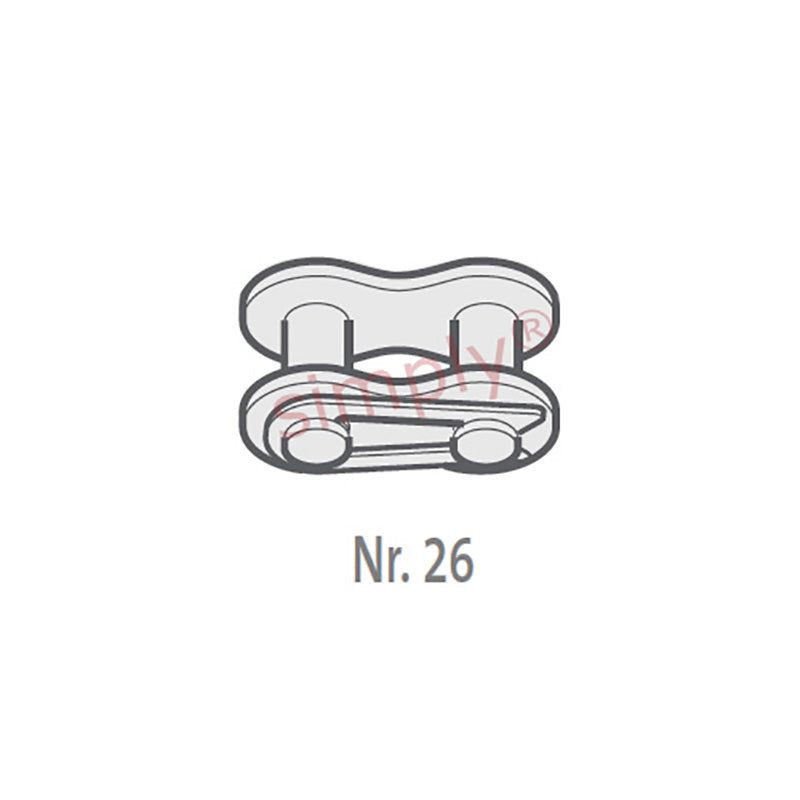

| Renold No. 26 ANSI Simplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical
| Pitch (A) | 0.625 inch |
|---|---|
| Pitch (A) | 15.875mm |
| Inside Width min (B) | 9.4mm |
| Roller Diameter max (C) | 10.16mm |
| Plate Height max (D) | 14.6mm |
| Plate Width Inner max (E) | 2.04mm |
| Plate Width Outer max (F) | 2.04mm |
| Pin Diameter max (G) | 5.08mm |
| Pin Length max (H2) | 20.4mm |
| Connecting Link Extension max (J) | 2.7mm |
| ISO606 Tensile Strength min | 21800 N |
| Weight | 0.015kg/m |
