SKU: 4T-30304CA-NTN

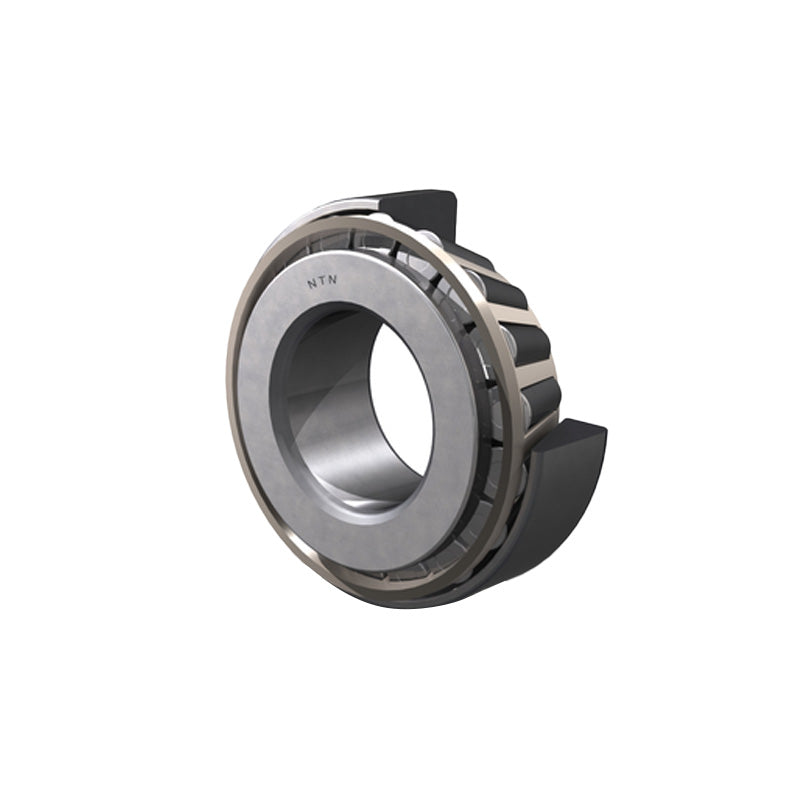

NTN 4T-30304CA Tapered Roller Bearing Cup and Cone Set 20x52x16.25mm

NTN 4T-30304CA Tapered Roller Bearing Cup and Cone Set 20x52x16.25mm
Regular price £17.43 ex VAT£20.92inc. VAT
Regular price Sale price £17.43 ex VAT£20.92 inc. VAT
Sale Sold out

In stock

Price Break
3+ £15.51
5+ £14.64
10+ £14.47
25+ £14.29
49+ £14.12
74+ £13.94
99+ £13.07
199+ £12.90
249+ £12.72
499+ £12.55
999+ £12.20
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 20mm
D 52mm
T 16.25mm
B 16mm
C 12mm
r<sub>s</sub> min 1.5mm
r<sub>ls</sub> min 1.5mm
--- Speeds and loads
Dynamic load C<sub>r</sub> 34.5kN
Static load C<sub>or</sub> 31kN
Allowable Speed in grease 7600rpm
Allowable Speed in oil 10000rpm
--- Abutment dimensions
d<sub>a</sub> min 28.5mm
d<sub>b</sub> max 27.5mm
D<sub>a</sub> max 43.5mm
D<sub>a</sub> min 39.5mm
D<sub>b</sub> min 48mm
S<sub>a</sub> min 3mm
S<sub>b</sub> min 4mm
r<sub>as</sub> max 1.5mm
r<sub>1as</sub> max 1.5mm
Load center a 13.5mm
Constant e 0.55mm
Y<sub>2</sub> 1.1mm
Y<sub>0</sub> 0.6mm
Weight 0.17kg
