SKU: 40B-3-NO11-DUN
Branded 40B-3-NO11 BS Triplex Chain Cottered Connecting Link 2-1/2 inch Pitch
Branded 40B-3-NO11 BS Triplex Chain Cottered Connecting Link 2-1/2 inch Pitch
Regular price
£85.46
ex VAT£102.55inc. VAT
Regular price
Sale price
£85.46
ex VAT£102.55
inc. VAT
Equivalent to: 40B-3-CL-COT 40B-3-CL
In stock
Price Break
10+
£76.06
19+
£71.79
29+
£70.93
39+
£70.08
49+
£69.22
74+
£68.37
99+
£64.10
199+
£63.24
249+
£62.39
499+
£61.53
999+
£59.82
Couldn't load pickup availability
Description
Description

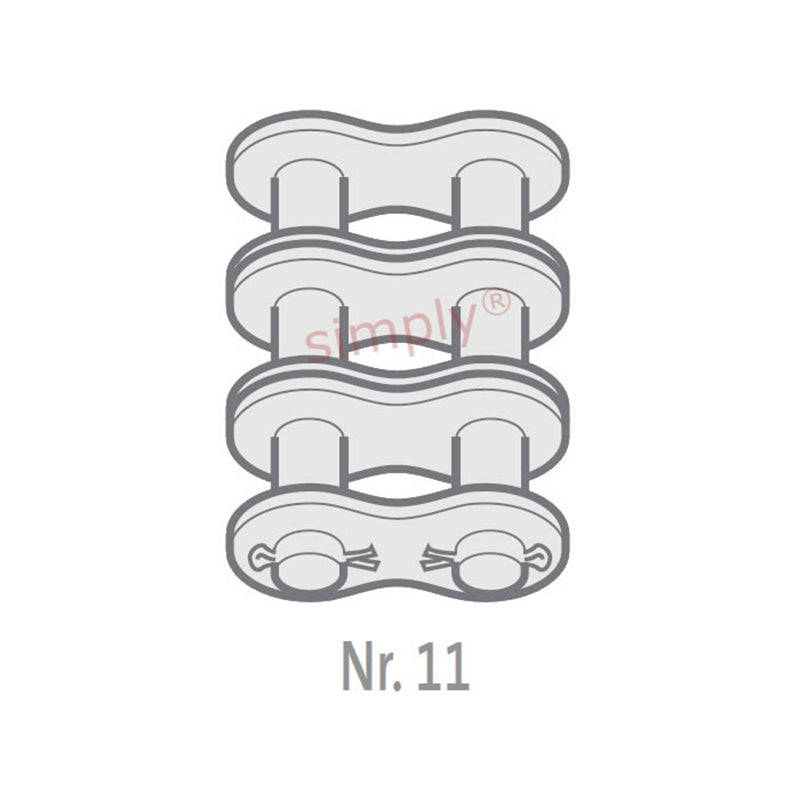

Dunlop COT / No. 11 European (BS) Triplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin.
Equivalent: 40B-3-CL-COT 40B-3-CL
- Brand / Quality:
- Branded - Good Quality
- Pitch:
- 63.5mm = 2.5 (2-1/2) inch
Technical
Technical
| Pitch (A) | 2.5 inch |
|---|---|
| Pitch (A) | 63.5mm |
| Inside Width min (B) | 39.3mm |
| Roller Diameter max (C) | 39.37mm |
| Plate Height max (D) | 52.96mm |
| Plate Width Inner max (E) | 8.13mm |
| Plate Width Outer max (F) | 8.13mm |
| Pin Diameter max (G) | 22.89mm |
| Pin Length max (H3) | 222.8mm |
| Connecting Link Extension max (J) | 9.5mm |
| ISO606 Tensile Strength min | 950000 N |
| Weight | 2kg/m |
